Well Counter Ring Shield - 1 or 2" Lead - Custom

Well Counter Ring Shield - 1 or 2" Lead - Custom
Item Number :
344-100

Well Counter Ring Shield - 1 or 2" Lead - Custom

Additional information necessary for order (see below)

Details

Open Section H: Dose Calibrators, Wells, Wipe Test, Workstations & Shields(PDF) to view related products. (Opens in a new tab)

Well Counter Ring Shield - 1 or 2" Lead - Custom

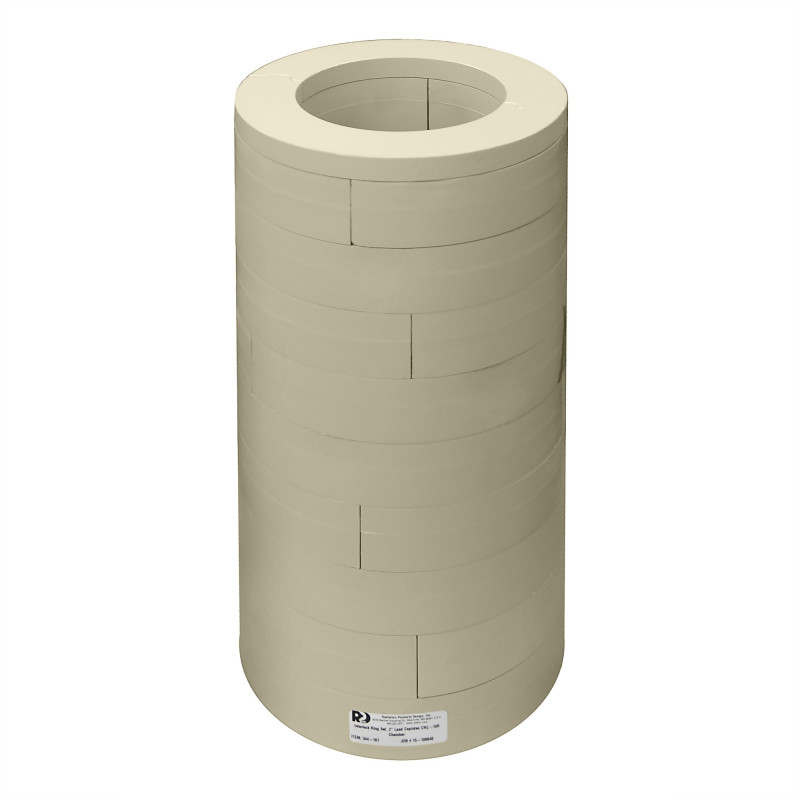

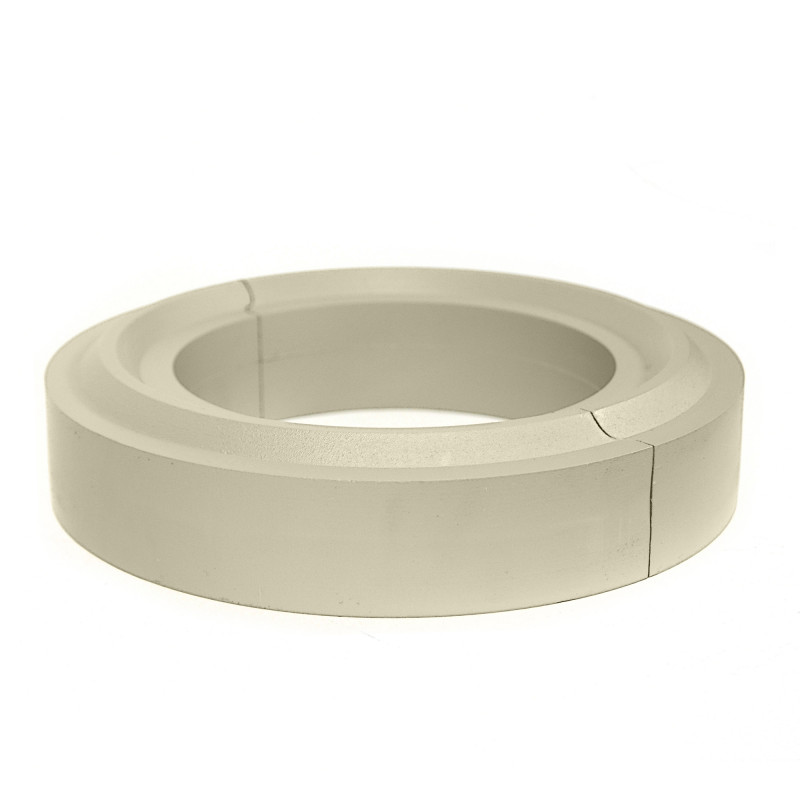

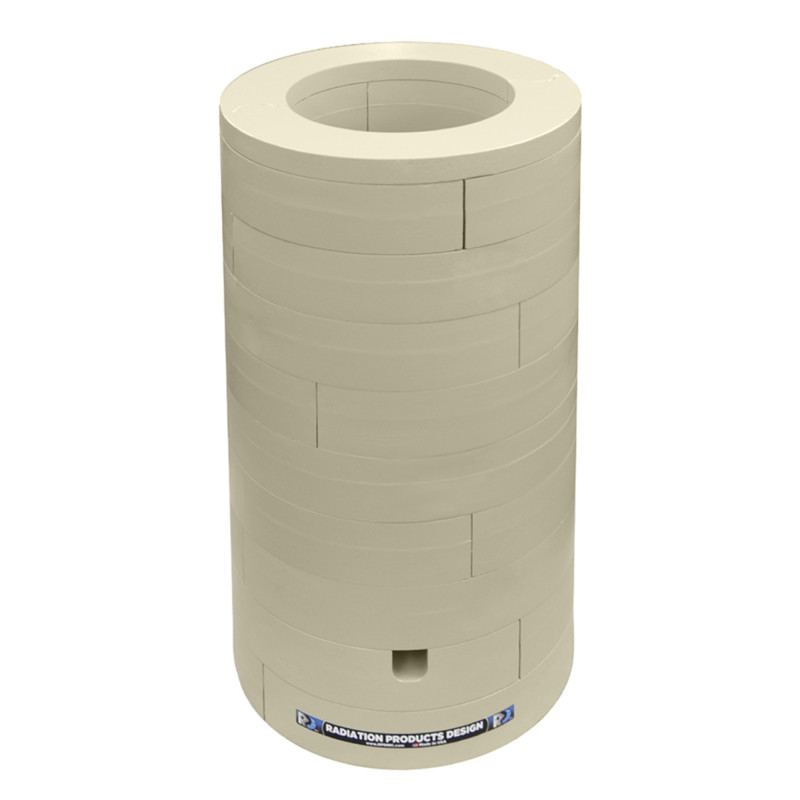

The interlocking ring set consists of interlocking lead rings that stack on top of a lead base block which is surrounded by on interlocking ring.

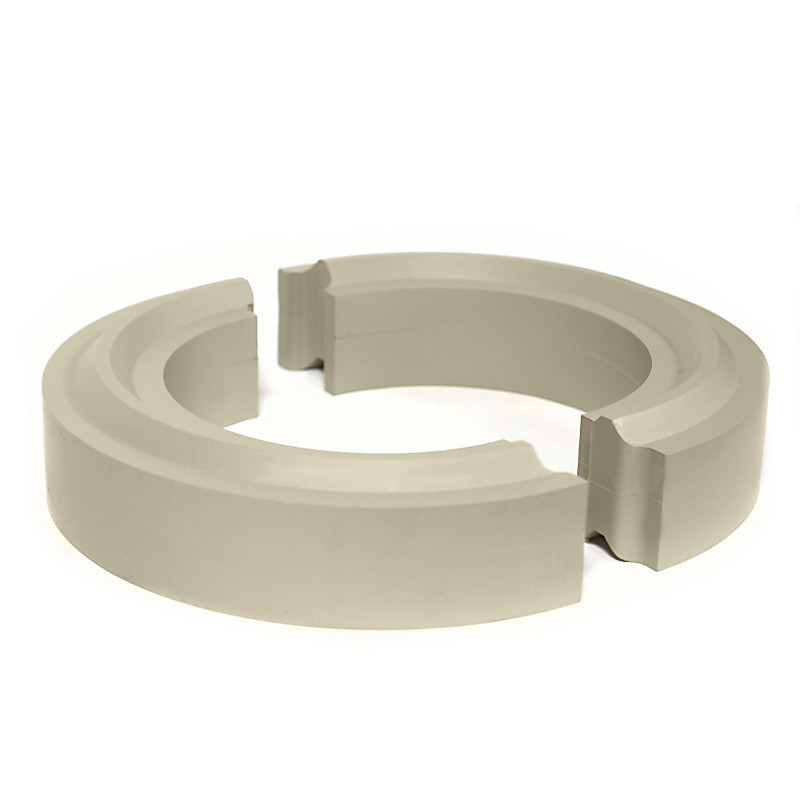

The lead rings offer three interlocks: two where the ring halves connect and another on top of the ring to fit into the bottom of the next ring.

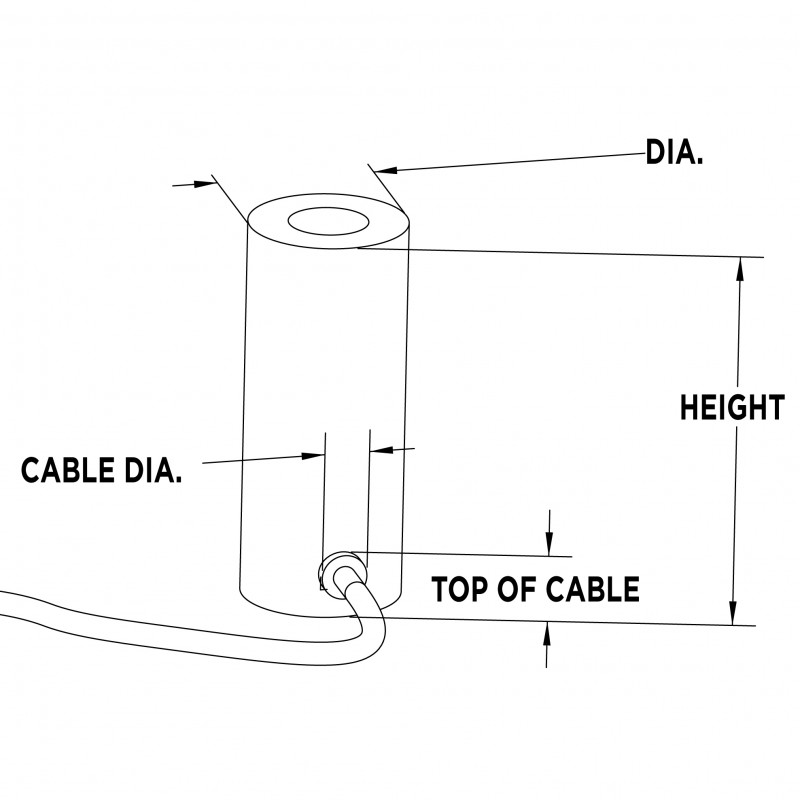

RPD can only Customize:
A: Height (Customer Specified)
B: Cable Hole and Location (Customer Specified)
C: Lead 1 or 2 Inch (2.54 or 5.08 cm) Thicknesses Available


Specifications
Lead Shielding:  1 or 2" thick (2.54 or 5.08 cm)
Overall Height:  Custom
Inside Height:  Custom
Outer Diameter:  9 or 11" Dia. (22.86 or 27.9 cm)
Inner Diameter:  7" (17.8 cm) Note: This dimension is not customizable
Finish: Axalta Beige Ridge Tan Powder Coating
Ships via Truck
