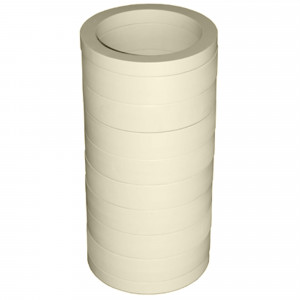

Well Counter Ring Shield - 1" Lead - Capintec CRC-15R
Well Counter Ring Shield - 1" Lead - Capintec CRC-15R
The 1" thick (2.5cm) Interlocking lead ring set provides additional shielding for the Capintec CRC-15R Well Chamber.
The interlocking ring set consists of a 1” high interlocking top ring, eight (8) 2” high interlocking lead rings that stack on top of a 1" thick (2.5 cm) lead base block which is surrounded by an interlocking ring.
The 1" thick (2.5 cm) lead rings offer three interlocks: two where the ring halves connect and another on top of the ring to fit into the bottom of the next ring. The product also includes an O-Ring that can be placed around the top of the well and inside the lead shielding to close the gap, preventing anything from falling between the two.
Specifications
Lead Shielding: 1" thick (2.5 cm)
Overall Height: 18" (45.7 cm)
Inside Height: 17" (43.2 cm)
Outer Diameter: 9" Dia. (22.8 cm)
Inner Diameter: 7" (17.8 cm)
Finish: Axalta Beige Ridge Tan Powder Coating
Weight: 195 lb (89 kg)
Ships via Truck
