Warming Plate for Wax Sheets

Open Section B: Bolus, Brass Mesh, Aquaplast, Spoilers, Contouring(PDF) to view related products. (Opens in a new tab)

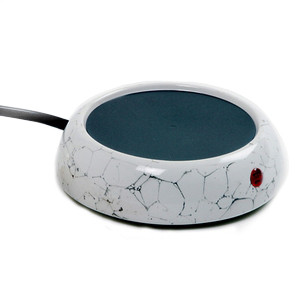

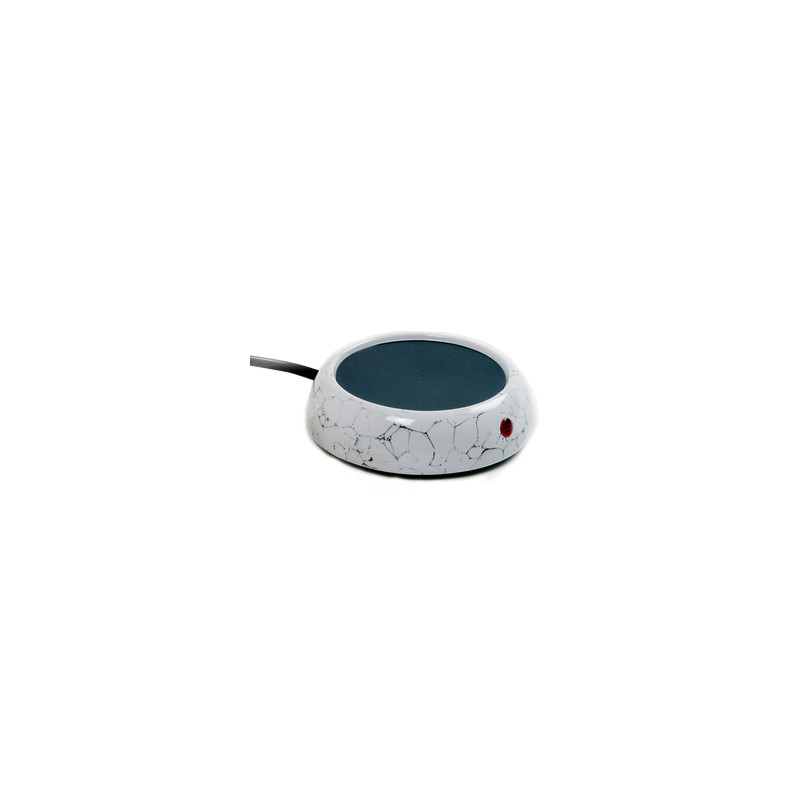

Warming Plate for Wax Sheets.

The Warming Plate and Stainless Steel Cup are used for melting wax to coat eye shields.

The wax is melted in a small stainless steel cup with a wide top on a small electric warming plate.  When the wax is melted, grip the eye shield with a forceps, dip into the wax for ten seconds and then remove.  Constantly rotate it in all directions while the wax is cooling to prevent wax from building up in any one place.  If the wax temperature is too low, it may go on the eye shield too thick and cause it to become bumpy.  If the wax temperature is too high, it will not coat the eye shield evenly with a smooth surface layer.

Specifications
Heating Surface:  3.75" Diameter (9.5 cm) Non-Stick
On-Off Switch
Neon Light Indicator
Extra Long 60" (152 cm) Cord
Overall Size:  4" Diameter x 1.6" H (10.2 x 4.0 cm)
Color/Finish:  White and Gray
Weight:  15 oz (0.43 kg)
Voltage:  120 V
Watts:  24 W
UL Approved

Refer to “Wax Coatings”, The Physics of Radiation Therapy by F.M. Khan, Ph.D., under 14.6 Field Shaping part D. Internal Shielding, last paragraph on page 340.
