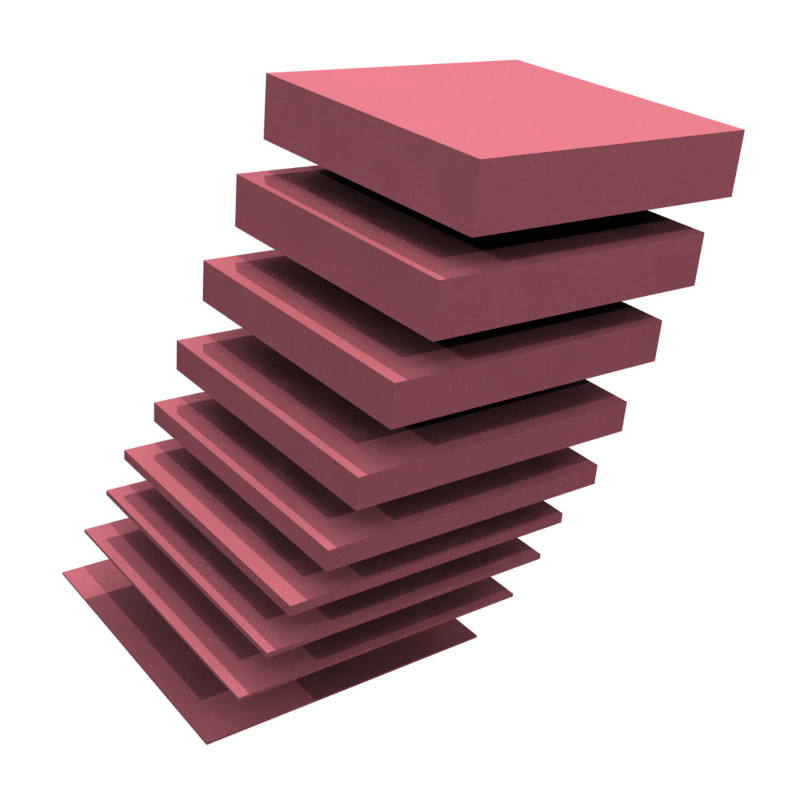

Virtual Water Phantom Set of 13 Assorted 30cm x 30cm Slabs, 30cm Total Height

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

Virtual Water Phantom Set of 13 Assorted 30cm x 30cm Slabs, 30cm Total Height

Virtual Water is an ideal alternative to traditional water tanks for performing routine QA checks of a linear accelerator using photon or electron beams

This Slab Kit includes
Total of 13 slabs, and 30cm total depth:

Quantity 1: 0.1cm Thick (Item # 605-301)
Quantity 2: 0.2cm Thick (Item # 605-302)
Quantity 1: 0.5cm Thick (Item # 605-305)
Quantity 1: 1.0cm Thick (Item # 605-310)
Quantity 3: 2.0cm Thick (Item # 605-320)
Quantity 1: 3cm Thick (Item # 605-330)
Quantity 1: 4cm Thick (Item # 605-340)
Quantity 3: 5cm Thick (Item # 605-350)
The kit also includes a watertight wheeled case

Custom Cavities Available
Cavities are available in slabs at least 2 cm thick to accommodate most Farmer-type or parallel plate ionization chambers. Optional scribe lines are available for laser alignment.

Tested and Calibrated
Virtual Water is a true water-equivalent material. Slabs from this unique material are exceptionally strong and will not stick together when stacked or stored. Virtual Water is not affected by changes in humidity or temperature and does not exhibit charge storage effects, a problem common in other water-equivalent materials. Each production run of Virtual Water is tested at an independent calibration laboratory and certified to be within 0.5% of water at photon and electron energies.

Setting the standard in water-equivalency
Virtual Water slabs are made from water-equivalent material, and are developed to be free of contaminants and air. Many standard sizes and thicknesses are available and custom phantoms are available upon request.

Specifications
Density: 1.03 g/cm3
Thickness tolerance: +/– 0.15 mm
Length and width tolerance: +/– 0.5 mm
Physical form: square slabs (standard)
Sizes available: 20 cm, 30 cm, 40 cm (standard)
Thicknesses available: 0.1 cm, 0.2 cm, 0.3 cm, 0.5 cm, 1.0 cm, 2.0 cm, 3.0 cm, 4.0 cm, 5.0 cm, 6.0 cm (standard) Flatness: 0.2 mm
Water equivalency: photon & electron range - 0.5%
Batch consistency: +/– 0.02% (measured)
