Universal Rail Block with 5/8" & 3/4" Holes

Open Section T: Positioning, Immobilization, Head Support, Masks, Chair(PDF) to view related products. (Opens in a new tab)

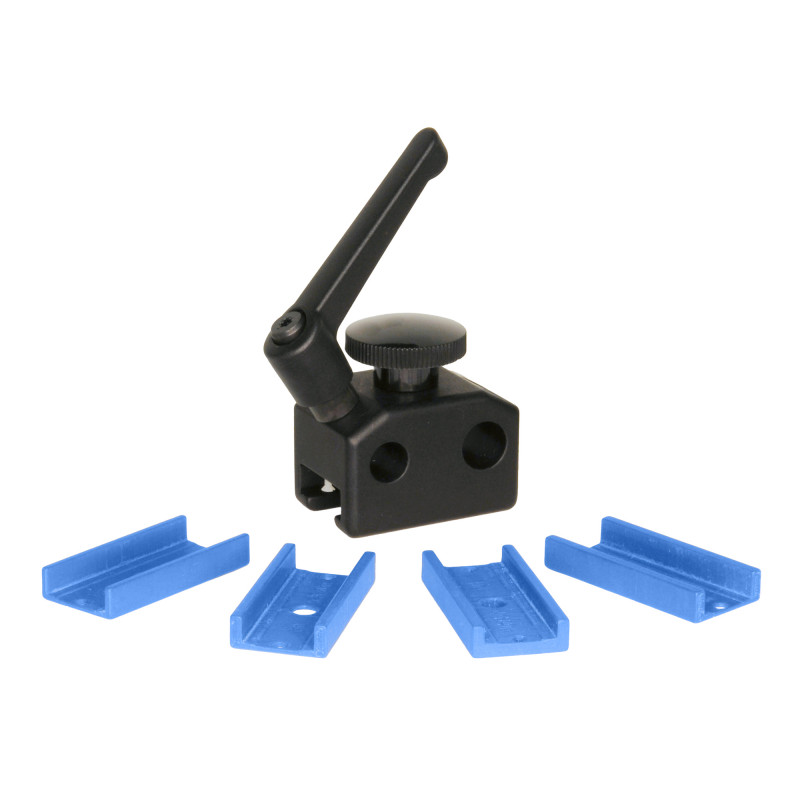

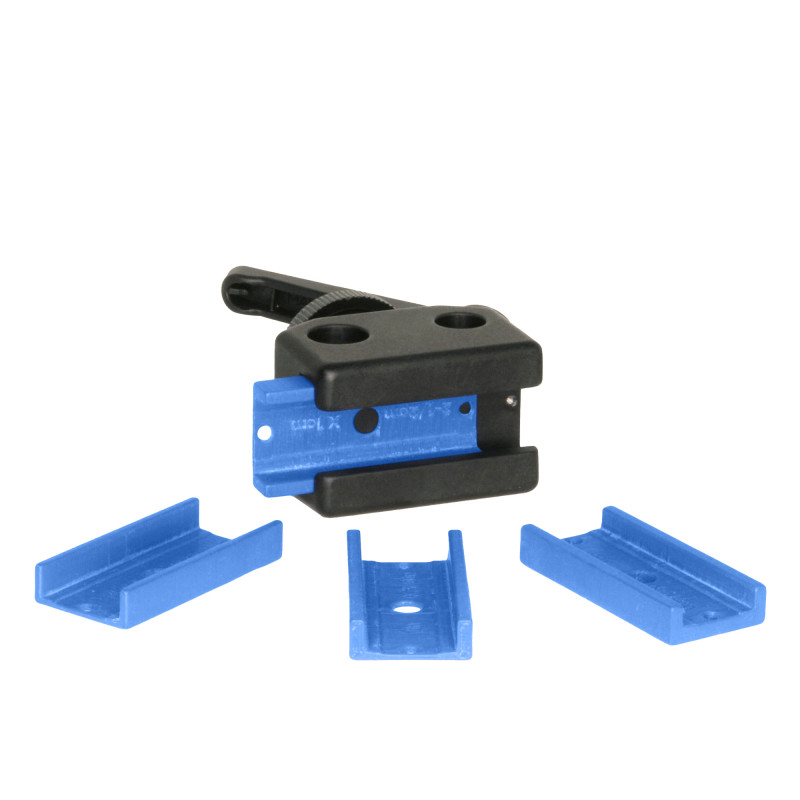

Universal Rail Block with 5/8" & 3/4" Holes - Four Rail Size Adapters

The Universal Rail Block serves as an adapter used to attach IV poles, patient positioning handles, and other devices to the rail systems of a variety of treatment tables.  It is compatible with four different rail systems including Varian, Siemens, Philips/Elekta and Theratron/Equinox systems. The rail blocks supports 5/8" and 3/4" pole attachments.

Product Includes:

• Universal Rail Block with 5/8" & 3/4" Holes
• Varian Rail Adapter (1.140" x 0.395")
• Siemens Rail Adapter (1.020" x 0.395")
• Philips-Elekta Rail Adapter (1.000" x 0.410")
• Theratron-Equinox Rail Adapter (1.000" x 0.270")

Specifications

Attachment Holes: 5/8 in (1.5875 cm), 3/4 in (1.905 cm)
Materials: Nylon, Steel alloy, Stainless Steel, Brass, Aluminum, ABS
