Treatment Brassiere Caddy

Open Section T: Positioning, Immobilization, Head Support, Masks, Chair(PDF) to view related products. (Opens in a new tab)

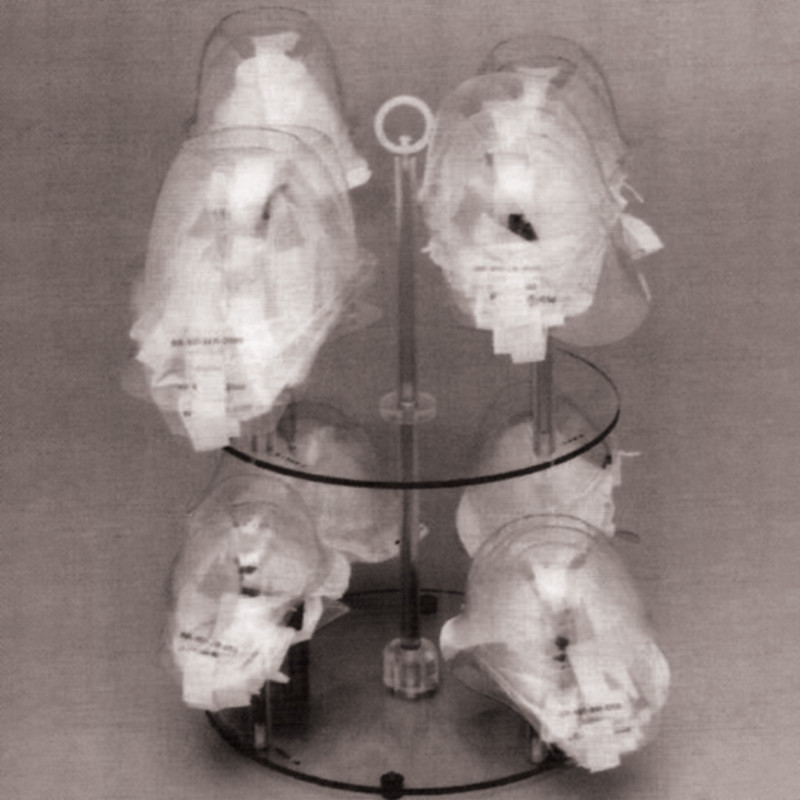

Treatment Brassiere Caddy

The caddy is portable, has 2 tiers, 8 posts for storage and comes with a dust cover.



Features of the Alderson Breast Dosimetry System:

•  Reshapes the ipsilateral breast more favorably for radiation treatments.

•  Eliminates inframammary folds.

•  Reduces dose to the lungs, heart and ribs.

•  Both shape and position are accurately repeatable, treatment after treatment.

•  More uniform dose.

•  Reshapes the contralateral breast to move it away from the beams.

•  Simplifies application of IMRT to breast treatments.

The Treatment Brassieres are breast cups formed of a transparent, semi-rigid plastic material.

Data on increased skin dose due to ipsilateral cup were submitted to the FDA. These data provided a comparison of skin dose increased by the Treatment Brassiere with the increase found for various thermoplastic positioning devices on the market. The skin dose due to the cup material (0.50 mm thick for small cups to about 0.63 mm thick for very large cups) was found to be substantially less than for other positioning devices. The FDA has issued a 510 (k) marketing clearance for the Treatment Brassiere.



Cup Selection
Cups are divided into four groups corresponding to small thoraxes (chest breadths from 27 to 32 cm), medium thoraxes (32 to 36 cm), large thoraxes (36 to 42 cm), and extra large thoraxes (over 42 cm).

Cup selection begins by measuring a patient’s chest breadth when supine and wearing her clothing brassiere. This measurement indicates the size group (S, M, L, XL) containing the correct cup. Left and right cups are not interchangeable.

The ipsilateral cup is positioned repeatedly on the patient by markings made on the patient’s skin through small holes at the medial, lateral and superior aspects of the cup flange.
Each cup is labeled to identify size group (S, M, L, XL), body Side (R or L), and breast volume.



Specifications
Material: Clear PETG Plastic
Density: 1.27 g/cm3
Thickness Range: .50 mm for smaller cups to .63 mm for extra large cups.



Treatment Brassiere Products

Treatment Brassiere Library (with Caddy) (Item # 674-100-TBC)
Includes the complete set of all 20 Left and 20 Right Treatment Brassieres and storage caddy

Treatment Brassiere Library (without Caddy) (Item # 674-100)
Includes the complete set of al l20 Left and 20 Right Treatment Brassieres, no caddy

Treatment Brassiere Caddy (Item # 674-TBC)
Portable 2 Tier, 8 post Storage Caddy with dust cover



Individual Brassiere Size Chart

Item # - Left	Item # - Right	Volume	Treatment Brassiere Size	*Approx. Cup Size
674-100SL-200	674-100SR-200	200 ml	Small - Chest Breadth 27 - 32 cm	A / B
674-100SL-300	674-100SR-300	300 ml	Small - Chest Breadth 27 - 32 cm	B / C
674-100SL-400	674-100SR-400	400 ml	Small - Chest Breadth 27 - 32 cm	B / C
674-100SL-500	674-100SR-500	500 ml	Small - Chest Breadth 27 - 32 cm	C
674-100SL-600	674-100SR-600	600 ml	Small - Chest Breadth 27 - 32 cm	C / D
674-100ML-250	674-100MR-250	250 ml	Medium - Chest Breadth 32 - 36 cm	B
674-100ML-500	674-100MR-500	500 ml	Medium - Chest Breadth 32 - 36 cm	C
674-100ML-750	674-100MR-750	750 ml	Medium - Chest Breadth 32 - 36 cm	C / D
674-100ML-1000	674-100MR-1000	1000 ml	Medium - Chest Breadth 32 - 36 cm	D / DD
674-100ML-1250	674-100MR-1250	1250 ml	Medium - Chest Breadth 32 - 36 cm	DD
674-100LL-500	674-100LR-500	500 ml	Large - Chest Breadth 36 - 42 cm	C
674-100LL-750	674-100LR-750	750 ml	Large - Chest Breadth 36 - 42 cm	C / D
674-100LL-1000	674-100LR-1000	1000 ml	Large - Chest Breadth 36 - 42 cm	D / DD
674-100LL-1250	674-100LR-1250	1250 ml	Large - Chest Breadth 36 - 42 cm	DD
674-100LL-1500	674-100LR-1500	1500 ml	Large - Chest Breadth 36 - 42 cm	DD / DDD
674-100XLL-1000	674-100XLR-1000	1000 ml	X-Large - Chest Breadth 42 cm - Over	D / DD
674-100XLL-1500	674-100XLR-1500	1500 ml	X-Large - Chest Breadth 42 cm - Over	DD
674-100XLL-2000	674-100XLR-2000	2000 ml	X-Large - Chest Breadth 42 cm - Over	DD / DDD
674-100XLL-2500	674-100XLR-2500	2500 ml	X-Large - Chest Breadth 42 cm - Over	DDD
674-100XLL-3000	674-100XLR-3000	3000 ml	X-Large - Chest Breadth 42 cm - Over	DDD
*Breast Sizes (volumes) correlate poorly with clothing brassiere cup sizes.
