TLD Chip Annealing Planchet with Acrylic Cover, Holds 100 TLD Chips

Open Section Z: TLD, Vacuum Tweezers, Stereotactic Systems(PDF) to view related products. (Opens in a new tab)

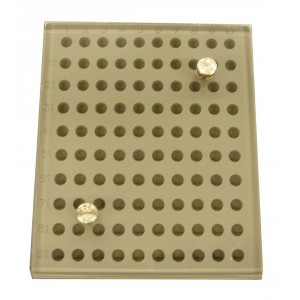

TLD Chip Annealing Planchet with Acrylic Cover, Holds 100 TLD Chips.

The TLD Annealing Planchets are engraved with numbers 1 to 10 across the top.  The chip planchet is engraved with numbers 11, 21, 31, 41, 51, 61, 71, 81 and 91 on the side, indicating chip locations.

The specially machined holes (3/16" diameter) allow good thermal contact of the chips providing rapid cooling when placed between  the brass cooling plate set (Item 164-000), as required by the Cameron Annealing Technique.
They are furnished with two holes on one end for the Planchet Handle (Item 163-002).  An acrylic storage cover with two thumb screws provides a secure way to retain the chips in their locations after cool down.

TLD Procedure

• Bake TLD chips at 400° C for 1 hour, then quench between Brass Cooling Plates (Item 164-000)

• Bake TLD chips at 80° C for 16 to 24 hours or 100° C for 2 hours

• Expose to radiation

• The TLD reader preheat cycle is set at 100° C

• The TLD’s should be read under a low amount of nitrogen, either 1.88 SLPM (Standard Liters per Minute) or 4 SCFH (Standard Cubic Feet per Hour).

Specifications
Material:  Anodized Aluminum
Size:  10 cm x 12 cm x 6.3 mm

Note:  To clean the holes, use cotton swabs.  Bake the planchet for 4 hours at 400° C before using.  The aluminum planchet will not deposit aluminum on the TLD chips.
