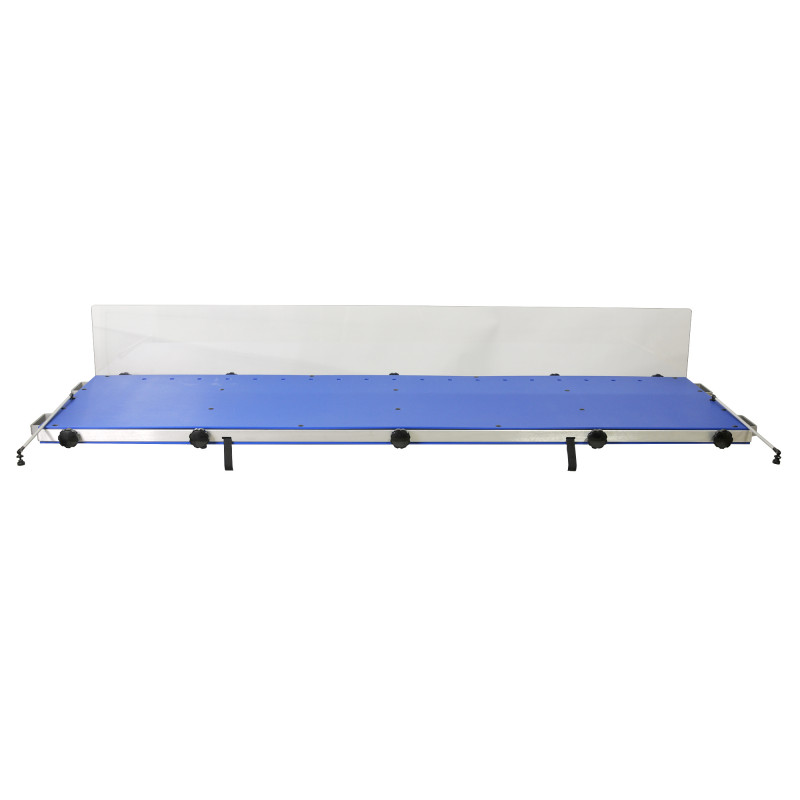

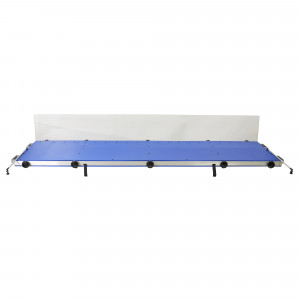

TBI Treatment Platform

Total Body Irradiation Treatment Platform



Features

 • Mounting for Beam Spoilers

 • Compatible with Adjustable Lung Block Hanging System for Spoiler Plates

 • Lightweight Frame



The Total Body Irradiation Platform was designed to aid physicians in the treatment of patients in decubitus positions. Lung blocks can be hung using Lung Block Adjustable Line Supports (Qty 4) (Item # 495-076).  The use of lung blocks is important in TBI to protect the patient from Pneumonitis.



Item # 495-075 Includes:
• TBI Treatment Platform
• TBI Treatment Platform Polycarbonate Body Support
• 10 ft. Belts to fasten to stretcher (Qty. 2)
• Knobs for fastening beam spoilers and body support to platform (Qty. 10)
• Struts for stabilizing beam spoilers and body support to platform (Qty. 2)



Treatment Platform Specifications

Platform Size: 215 cm x 65 cm
Overall Length: 229cm (including handles)
Platform Material: Aluminum, HDPE Plastic
Belts: Two 10 ft. Belts with locking clasp for securing TBI Platform to stretchers or tables.
Weight: 66 lbs (30 kg)

TBI Treatment Platform Polycarbonate Body Support Specifications
Usable Area: 200 cm x 30.5 cm
Thickness: 0.5 in (1.27 cm)
Material: Polycarbonate (1.2 g/cm³)
Weight: 22 lbs (10 kg)





Accessories - Not Included



Beam Spoiler - 1/2" Polycarbonate 215 cm X 68 cm
(Item # 495-080)
Usable Area: 200 cm x 50 cm
Thickness: 0.5 in (1.27 cm)
Material: Polycarbonate (1.2 g/cm³)
Weight: 46 lbs (20.9 kg)



Beam Spoiler - 3/8" Polycarbonate 215 cm X 68 cm
(Item # 495-082)
Usable Area: 200 cm x 50 cm
Thickness: 0.5 in (1.27 cm)
Material: Polycarbonate (1.2 g/cm³)
Weight: 46 lbs (20.9 kg)

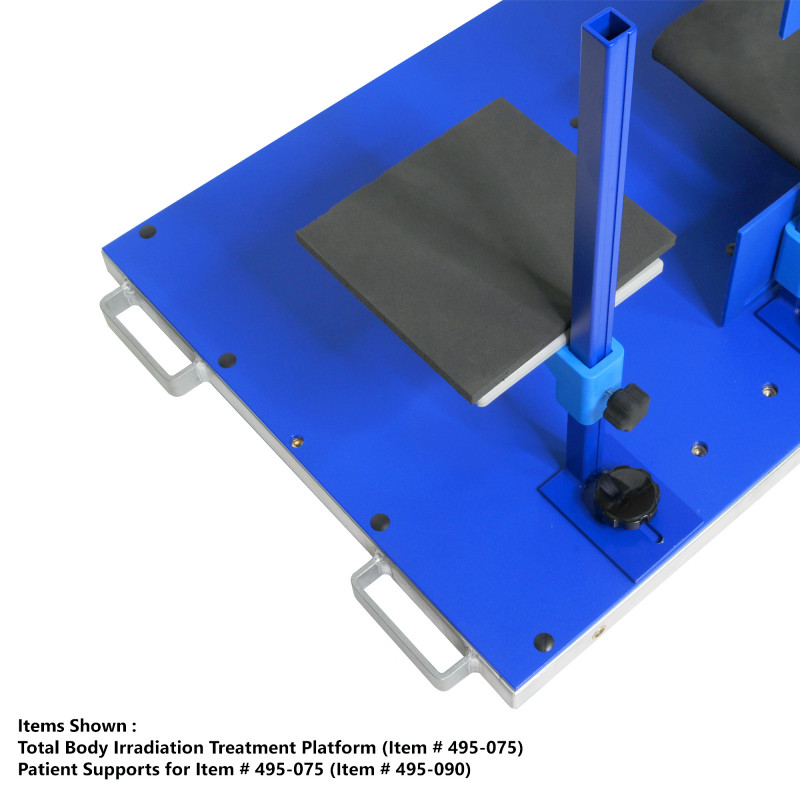

Patient Supports for TBI Treatment Platform
(Item # 495-090)

TBI Padded Electric Lift Table - 21.5"-37.5" Height
(Item # 182-330)

TBI Padded Electric Lift Table - 31"-47" Height
(Item # 182-340)



Adjustable Lung Block Hanging System for Spoiler Plate (Set of 4)
(Item # 495-076)
Includes four hanging brackets and cord for hanging lung blocks



Laser Alignment Tray for Varian Type III (with MLC) Tray Slot
(Item # 495-630)



Durable Hanging Cord, 16ft (4.88 m) - Refill
(Item # 495-077)
Refill - Cord Only
495-075 includes four hanging brackets and cord for hanging lung blocks.



Styrofoam Platform Height Extension - 1in (2.5 cm)
(Item # 871-2179)

Other sizes are available on request.
