Stainless Articulating Arm for Zephyr HDR

Stainless Articulating Arm for Zephyr HDR

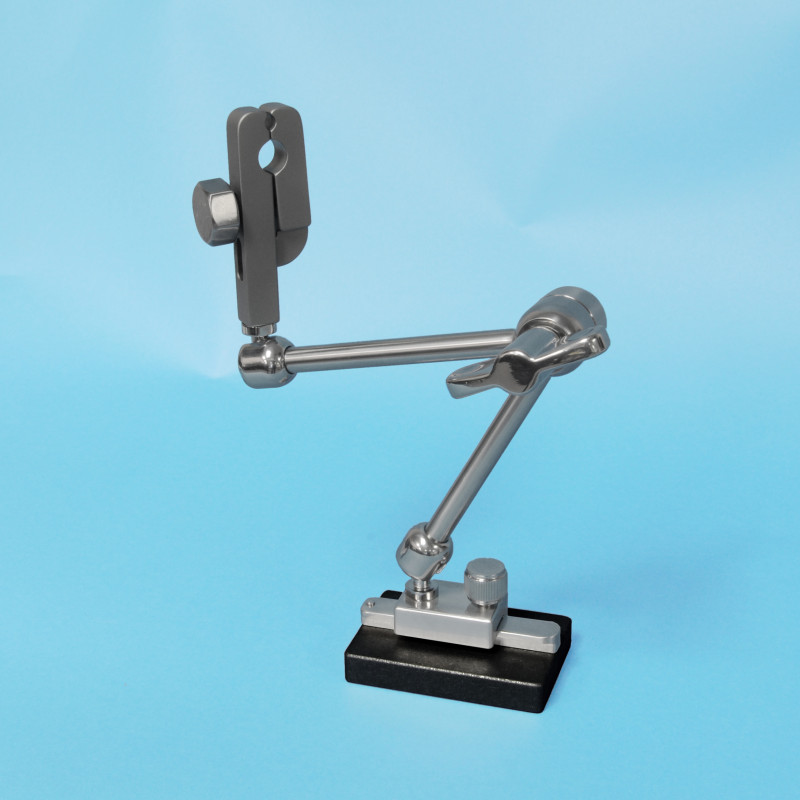

The Stainless Articulating Arm for Zephyr HDR was designed to hold a HDR Nucletron, HDR Varian, HDR Eckert & Ziegler, FSD LDR Applicators, Vaginal Cylinder, Tandems or other objects securely in place during GYN brachytherapy treatment on the Diacor Zephyr HDR System.

The applicator clamp is fixed to one arm of the articulating arm and the other arm is fixed to the rail block. The rail block slides onto the 6" long board rail and is locked in position with the thumb screw.

The Articulating Arm has two arms that can rotate 360°. The end of each arm has a cutout swivel that houses a ball stud and allows for another 360° of rotation. A wing knob in the center of the arms locks the position of both arms and the swivel ball ends.

Specifications

Base Size: 3" x 3" x 3" (7.62 x 7.62 x 7.62cm)
Base Material: Black Delrin
Rail: 3" Long Titanium (7.62cm)

Articulating Arm Size

Arm Length including Ball Stud: 12.2 cm
Overall Size with arms at 180°: 27 cm W x 6 cm H
Material: Stainless Steel

How to Order
Order the arm system with the item number extension added to the end of the item number for the clamp that matches your intended use.

See GYN Clamp Options Chart here

Example: Choose item number 978-65201 for Stainless Articulating Arm for Zephyr HDR 6mm/8mm Clamp Holes

Note: Zephyr bracket is not included
