Short, Top & Bottom Bars Conversion for Beam Spoiler Frame for TBI (Item # 495-010)

This product contains only replacement bars to convert the Beam Spoiler Frame for TBI (Item # 495-010) into a smaller profile. Beam Spoiler Frame for TBI (Item # 495-010) is required to use this product.

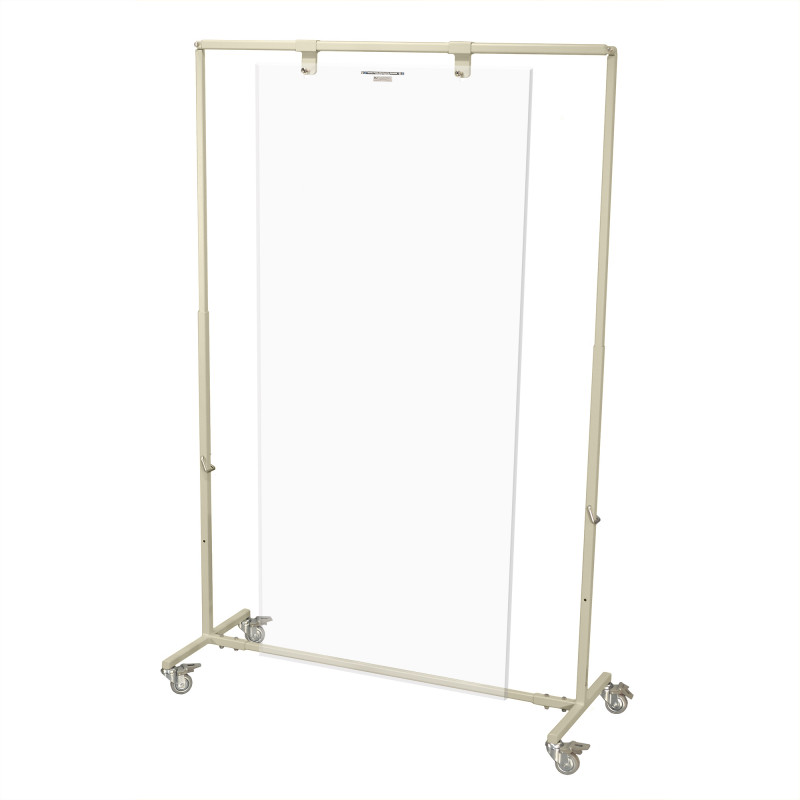

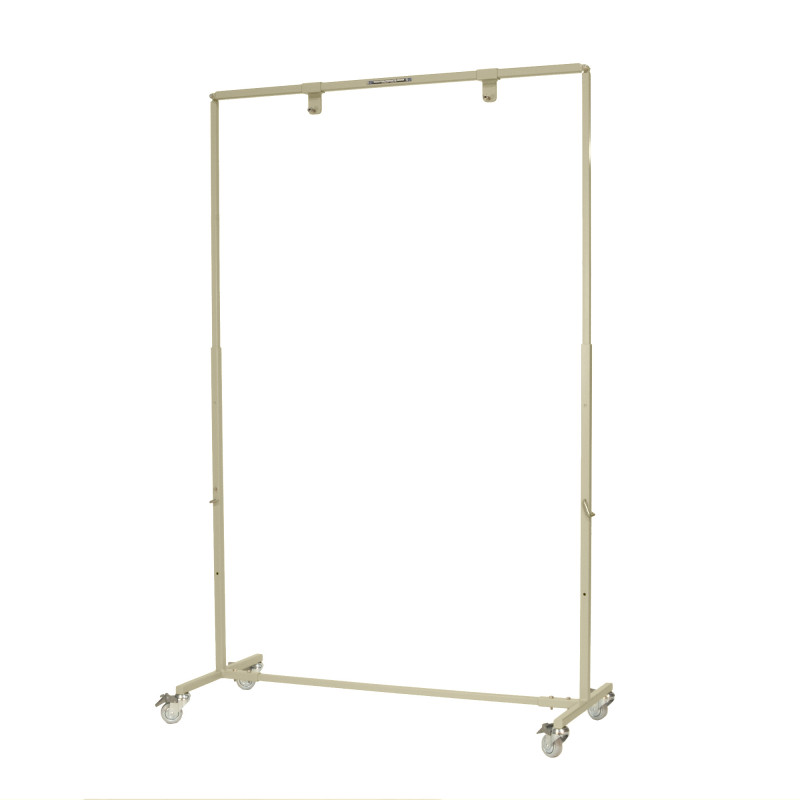

The Beam Spoiler Frame will hold up to 1" of thickness beam spoiler for Total Body Irradiation. The frame is made of 1" (2.54 cm) square and 1.25" (3.18 cm) square steel tubing. The vertical legs are telescoping to allow for 93.375" height. Two adjustable hangers on the top horizontal bar are positioned to hold a beam spoiler in the verical direction. The frame can support up to 1" (2.54 cm) thickness of plates for Photons (2 of the .50" maximum). Four 3" (7.62 cm) diameter swivel locking casters allow for easy movement of the Beam Spoiler. The frame can be dismantled for storage.

Optional Beam Spoiler plates are available in acrylic or polycarbonate in 0.375" (0.95 cm) or 0.50" (1.27 cm) thickness and are 38" W x 86" H. The beam spoiler plates have 2 key holes on the 38" side for hanging. The frame can support 2 Beam Spoiler plates (Items 495-600-83, 495-600-84, 495-600-85 and 495-600-86). The key holes can also be used to hang the beam spoiler plates from wall hooks for storage.

See Accessory tab above for links to the optional Beam Spoiler plates.

Specifications of Frame

Overall Frame Size while Installed: 59" L x 24" W x 93.375" H (150 x 61 x 237 cm)

Finish: Axalta Beige Ridge Tan Powder Coating

See documents tab for drawing/diagram

Note: This is not a standalone product.  Beam Spoiler Frame for TBI (Item # 495-010) is required to use this product.
