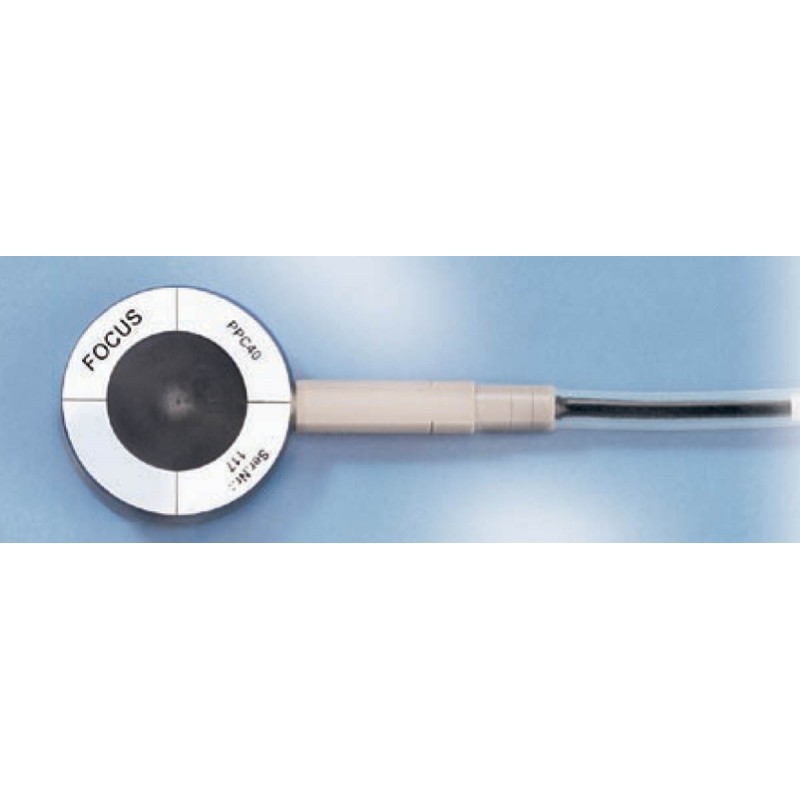

Scanditronix / Wellhofer Parallel Plate Chamber PPC40.

All plane parallel chambers are designed for measurements with high reproducibility in air, in solid or in water phantoms.

Superior physics characteristics:  Stabilization time after polarity change approx. 30 s, Polarity effect < 1% for all usable energies, field sizes and depths at linear accelerators.

Features

• Waterproof

• Air ionization chambers

• Vented through waterproof sleeve

• Fully guarded

• Supplied with individual factory calibration certificate and user’s guide

Specifications
Materials:  PMMA
Window Thickness:  118 mg/cm^-2, 1 mm
Active Volume:  0.40 cm³
Electrode Spacing:  2.0 mm
Collecting Electrode Diameter:  16.0 mm
Guard Ring Width:  4.0 mm
Waterproof:  Yes
