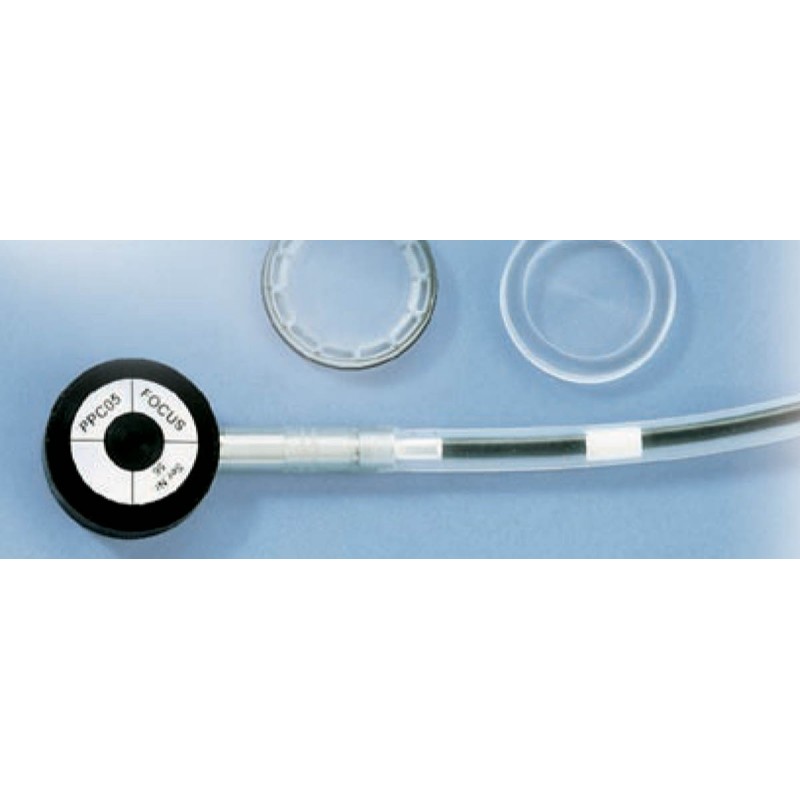

Scanditronix / Wellhofer Parallel Plate Chamber PPC05.

All plane parallel chambers are designed for measurements with high reproducibility in air, in solid or in water phantoms.

PPC05 and PPC40 are suitable for absolute dosimetry of electron, photon and proton beams in radiotherapy.  Higher spatial resolution (depth dose).  Suitable for phantoms and holders designed for Markus chamber.

Features

• Waterproof

• Air ionization chambers

• Vented through waterproof sleeve

• Fully guarded

• Supplied with individual factory calibration certificate and user’s guide

Specifications
Materials:  Window and body C552 Graphite (PEEK) Electrode
Window Thickness:  176 mg/cm^-2, 1 mm
Active Volume:  0.05 cm³
Electrode Spacing:  0.5 mm
Collecting Electrode Diameter:  10.0 mm
Guard Ring Width:  3.5 mm
Waterproof:  Yes
