Rotational Total Body Irradiation (TBI) Stand 220-240 VAC

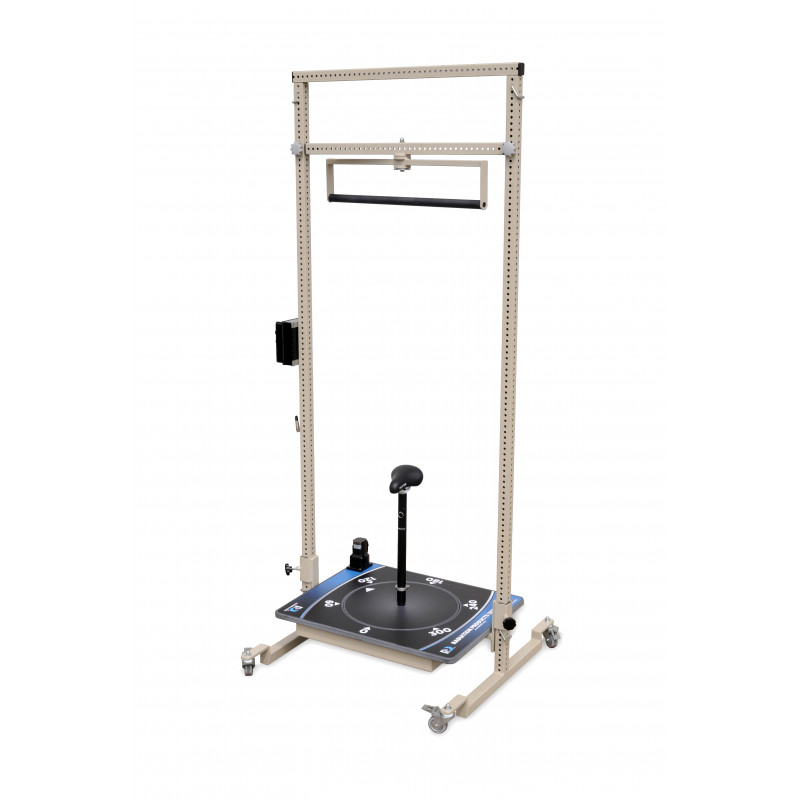

The Rotational Total Body Irradiation Stand was designed for use when treating the total body with electrons.

The stand has an adjustable rotating platform that adjusts vertically based on the patient’s height and will rotate 360°.  The platform is marked in 60° increments.  The adjustable rotating platform is in the lowest position at 4.5" from the floor and is adjustable upward in 1" increments.  This allows centering the patient to the central axis of the beam.  The rotating platform is made of gray PVC covered with non-slip vinyl material and has a mounting hole for the seat post.  The Rotation Motor attaches to the rotating platform with four (4) mounting screws and the Motor Speed Controller attaches to the vertical "T" leg.  The Motor Speed Controller is variable speed and adjustable from 3 to 7 RPM with scale markings at 3, 4, 5 and 6 RPM.  A slow Start-up and Slow-down is designed into the Motor Speed Controller for patient stability.  A 60’ On/Off Rotation Remote Control Cable with a switch allows the therapist to start and stop the platform rotation from the control area.

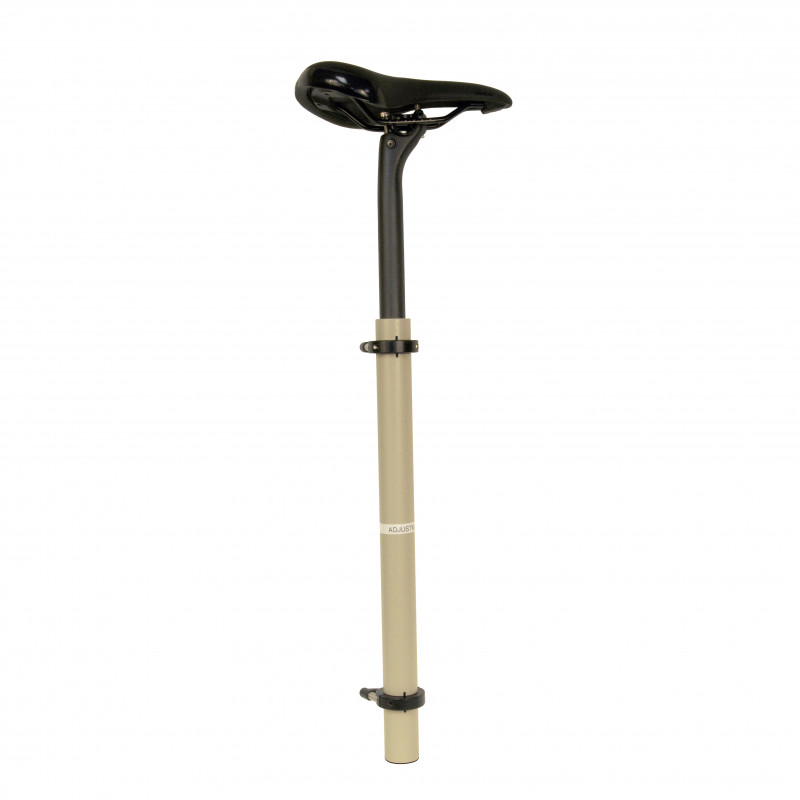

An adjustable seat post is included to provide maximum adjustment, in 1/4" increments, of the seat height.  The seat post to be used is determined by the patient's leg inseam.  The seat height is determined and the seat is locked to the seat post.  The seat direction is set by rotating the seat post and locking when desired direction is selected.

The rotational hand rail assembly rotates freely with patient rotation and accommodates the optional Safety Harness (Item 495-6066).

The Rotational Total Body Stand frame is made of 2" steel tubing.  The frame consists of two (2) "T" legs with casters and a top stabilizer bar.  Holes spaced 1" apart on the vertical "T" legs allow easy adjustment of the rotating platform and hand rail assembly.  The Rotational TBI Stand can be taken apart easily for storage.  The rotation motor is easily removable from the rotating platform by removing the four (4) mounting screws and the motor speed controller easily lifts off the vertical "T" leg.  The top stabilizer bar, vertical "T" legs, adjustable rotating platform and rotational hand rail assembly are all removable for easy breakdown. The beam spoiler hanger assemblies attach to the top stabilizer bar. The stand has 4 swivel locking casters which allow easy movement and positioning.

A transformer is used to convert from 220-240 VAC outlets to 120 VAC. The transformer plugs directly into the 220-240VAC receptacle while the TBI Motor Controller connects to the 120VAC transformer receptacle.  The desired plug should be specified when ordering.

The Rotational Total Body Irradiation Stand Includes:

•  Frame

•  Adjustable Rotating Platform

•  2 Adjustable Seat Posts

•  Seat

•  Rotational Hand Rail Assembly

•  Rotation Motor

•  Variable Motor Speed Controller 3-7 RPM

•  On/Off Rotation Remote Control Cable and Connector

•  2 Beam Spoiler Hanger Assemblies

•  Transformer Assembly 240VAC to 120VAC

How to order:

Choose the item number that has the power cord that matches your power outlet.

Example: Choose item number 495-609A for a Rotational Total Body Irradiation (TBI) Stand 220-240 VAC with a CEE 7 power cord.

Specifications

Overall Size: 45" W x 43 1/4" L x 110" H (114 x 110 x 280 cm)

Platform Size: 38" W x 31" L (96.5 x 78.7 cm )

Rotation Area: 22" Diameter (56 cm)

Rotation Speed: 3-7 RPM

Voltage: 220-240 VAC

Hertz: 50/60Hz

Adjustment from Floor: 4 1/4" (11 cm) and up in 1" increments

Shipping Weight: 485 lbs. (221 kg)

Weight Capacity: Passed 500 lb (226 kg) load test

Optional Accessories

Item 495-603:
Wedge Tray Flattening Filter for TBI, 6 MeV, Varian III

Item 495-604:
Wedge Tray Scale for TBI Isodose Curves, Varian III

Item 495-6066:
Safety Harness, attaches to the rotational hand rail assembly and prevents a patient from falling.

Item 495-605-83 through 495-605-86:
Beam Spoiler/Degrader Assembly the optional beam spoiler is available in 3/8" or 1/2" thick acrylic or polycarbonate.  The beam spoiler measures 42" W x 96" L.
Acrylic Density:  1.185 g/cc
Polycarbonate Density:  1.2 g/cc

Item 936-583 through 936-627:
Tungsten Eye Shields with Aluminum Caps

Item 935-5831 through 935-6272:

CT/MR Dummy Eye Shields
