Radiation Alert® Sentry EC Dosimeter & Ratemeter

The Radiation Alert® Sentry EC Radiation Dosimeter & Ratemeter is ruggedized, has vibrating and audible alarms, and collects accumulated exposure in the on-board memory. Set alarms and download data with the FREE SentryCom Software.

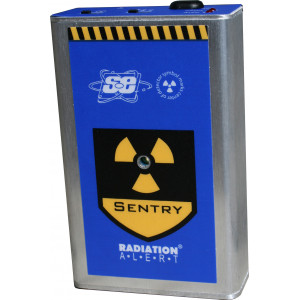

The Radiation Alert® Sentry EC is a Personal Alarming Dosimeter/Ratemeter designed to ensure the safety of personnel that work in occupations with potential x-ray or gamma exposure.

The pocket sized unit has an energy compensated tube for linear response to gamma and built in memory for recording data points for tracking accumulated exposure. The included SentryCom Software enables you to generate incident reconstruction for analysis. The software also permits you to easily set the vibrating and audio alert to your desired levels for dose (>1.0 mR/10 μSv) and dose rate (>1.0 mR/hr/10 μSv/hr).

Use the audio switch to choose between audible clicks with each count received or discreet silent mode.

Specifications

Detector: Energy Compensated GM Tube

Dose Rate Linearity: Better than ±15% up to 15 R

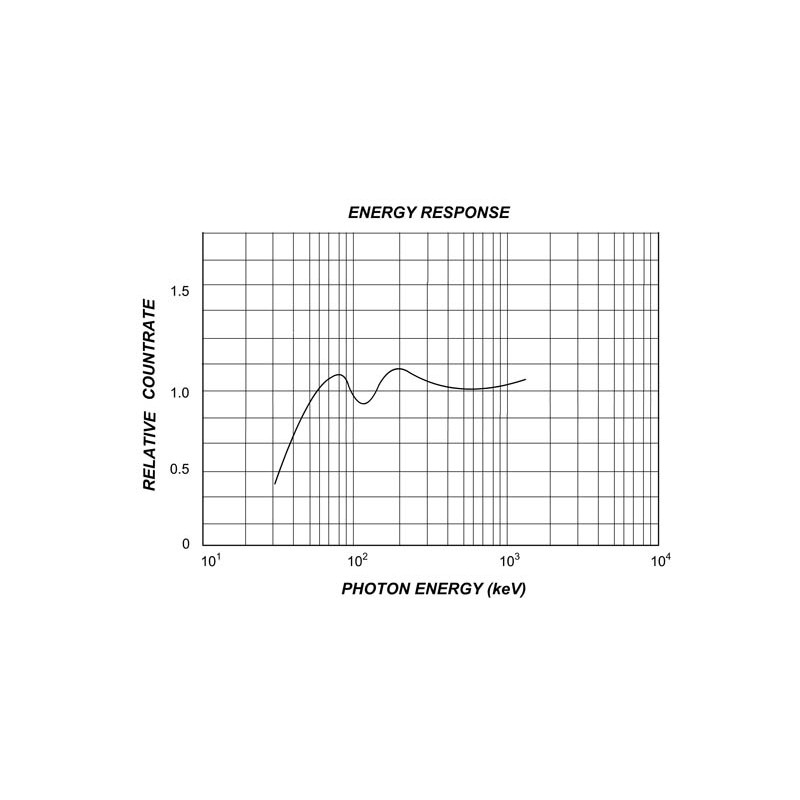

Energy Response: Down to 20 KeV

Accuracy: Typically ±15% of reading (Cs137)

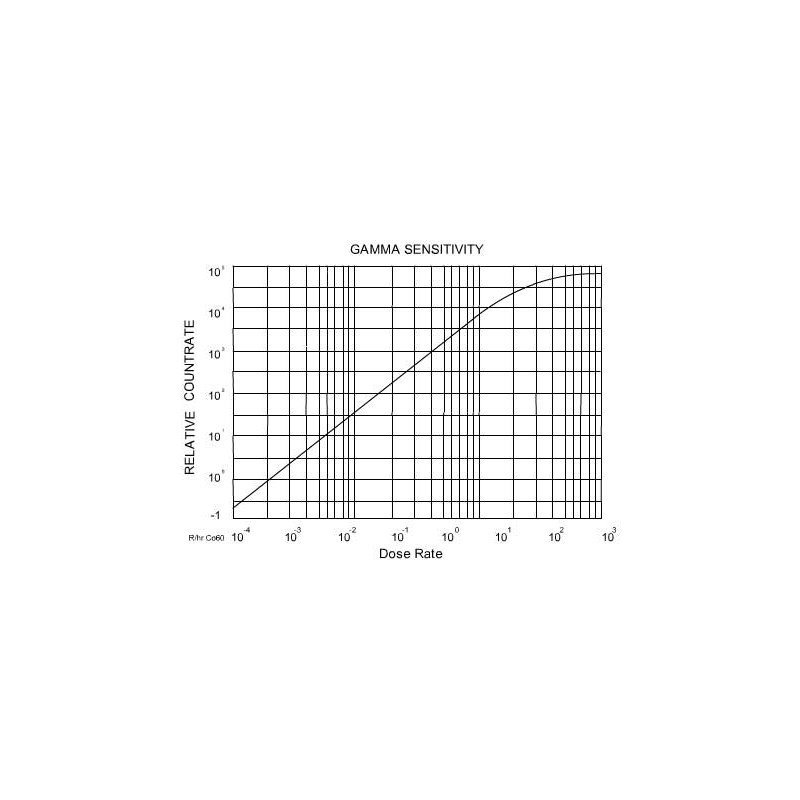

Gamma Sensitivity: 1.5 cps/mR/hr (Co60)

Operating Range: Dose Rate: 0.1-15 R/hr (1 μSv/hr - .15 Sv/hr)

                             Accumulated Dose: 0.1-65 R (1 μSv - .65 Sv)

Audible Alarms: Accumulated Dose & Dose Rate, 90db @ 1 ft.

Alarm Thresholds: Default: Dose 500 mR/Rate 50 mR/hr

                              Sievery Option: Dose 5000 μSv/Rate 500 μSv/hr

                              Alarm and warning levels are user selectable with the Free SentryCom Software

Switch Functions: Power, Vibrate & Audible Alert, Silent Vibrating Only Alert, and Audio Clicks On/Off

Power Requirements: 9-Volt Alkaline Battery (Included) Approx. 1500 hrs at normal background

Enclosure: Anodized Aluminum Housing w/ Metal Belt Clip

Outputs: Mini-USB

Temperature Range: -20° - + 50°C (-4° - +122°F)

Weight: 228g (8 oz)

Size: 10.6 x 6.7 x 2.8 cm (4.2 x 2.7 x 1.1 in)

SentryCom Software

The Windows™ based SentryCom Software enables you to set the values for dose and dose rate alarms and warnings, set the Cal Factor, and the data logging frequency. It also allows the user to download the accumulated exposure data, whcih includes time and date stamp, exposure, and power cycle identifiers for analysis. The data is stored in a convenient delimited text file for use with a spreadsheet program.
