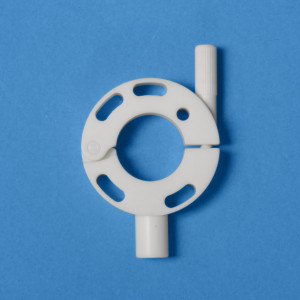

MR/CT Multipurpose 40mm Dia. Collar Clamp

Open Section L: GYN / HDR / LDR Applicators & Accessories(PDF) to view related products. (Opens in a new tab)

MR/CT Multipurpose 40mm Dia. Collar Clamp

Features
 • Secures to 40mm diameter cylinders
 • Allows for reproduceable insertion depth
 • 12mm Dia. Stem for Positioning clamps
 • Slotted for Velcro® strapping to secure in place with Implant Briefs
 • MR/CT Safe

This clamping system designed to secure to vaginal cylinders or dilators while providing a stopping point and reproduceable insertion depth. The devices also provide a 12mm fastening stem for RPD Arm clamps systems, and slotted holes for Velcro fastening. Our Collars Clamps are produced in sizes ranging from 10mm to 50mm diameter corresponding with the diameters of our available nylon dilators and vaginal cylinders. Other sizes not listed in that range can be made to order by request.

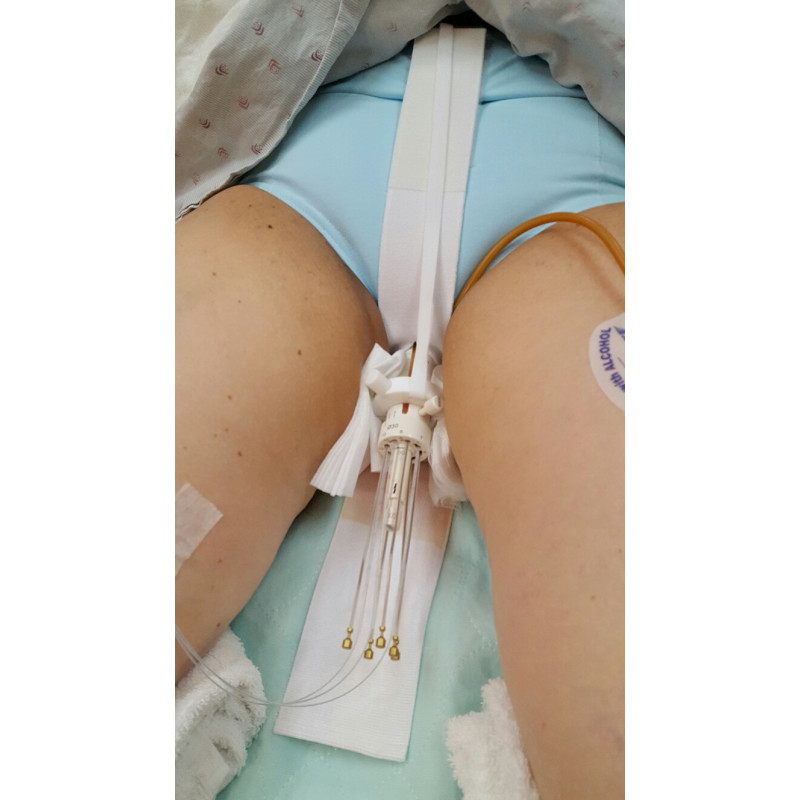

To use this device with Implant Briefs, secure one end of the Velcro to Brief, then insert the other end through slot in clamp and secure back to velcro.

Instructions for Use

1. Slide the collar clamp to the dilator or applicator
2. Adjust the collar clamp location to the desired insertion depth
3. Tighten the collar clamp with the fastener
4. When in use, position the fastener and knob so they do not rub against the patient’s legs and cause discomfort
5. (Optional) If using Radiation Implant Briefs, you may loop Velcro through slots on the collar clamp, then strap to the Implant Briefs to keep the applicator or dilator in place

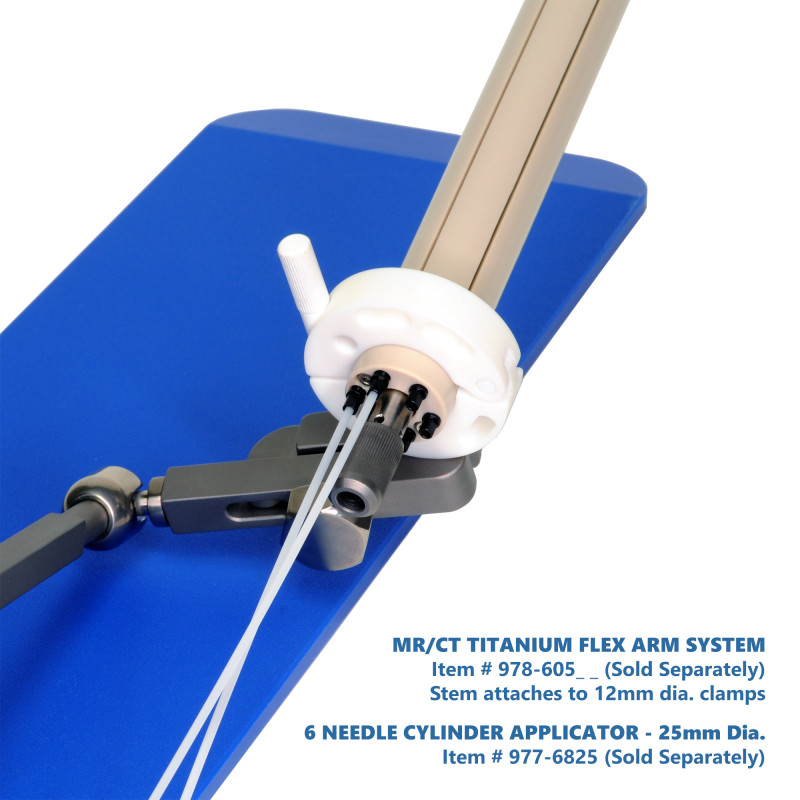

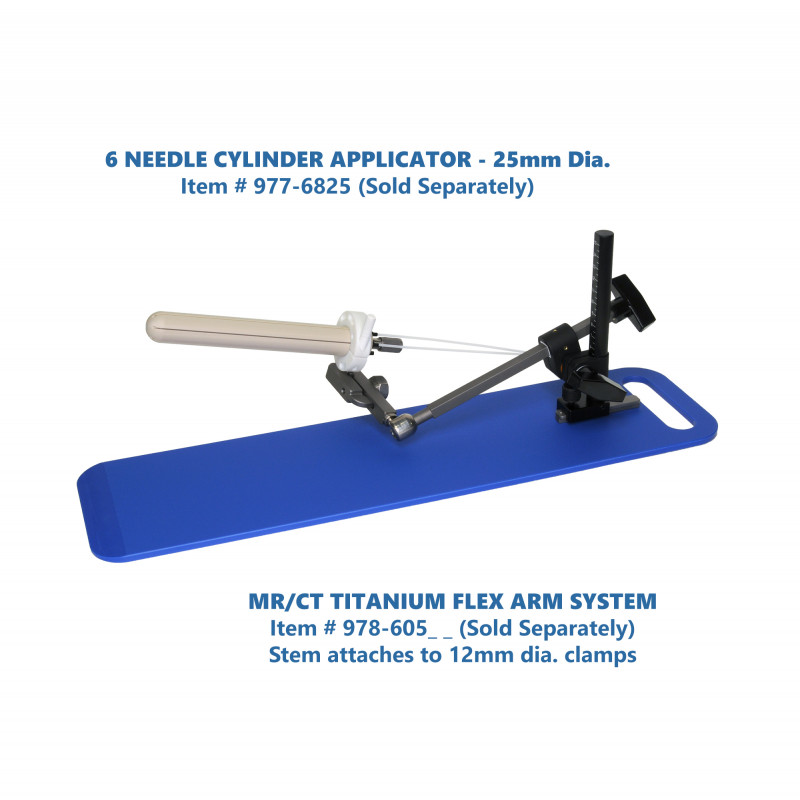

6. (Optional) If using an Articulating or Flex Arm system, attach the GYN clamp to the 12mm diameter stem of the collar clamp and then tighten the arm system in the desired position

Specifications

Clamping Diameter: 40mm

Stem Diameter: 12mm

Material: PET-P (Ertalyte®)

Re-usable: Yes

Serilization: Ethylene Oxide (EtO)

MR Safe

CT Safe
