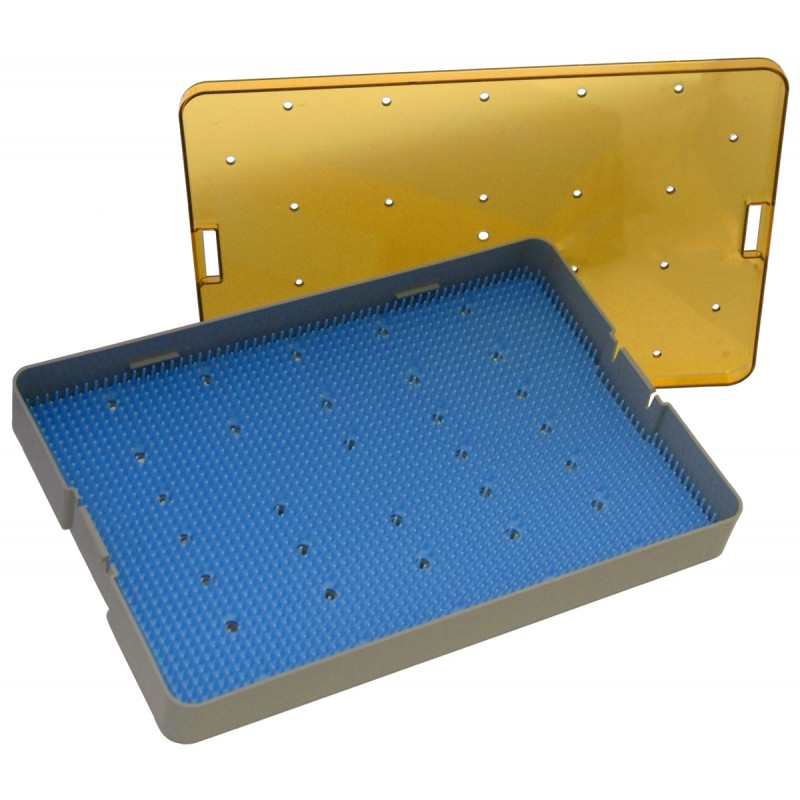

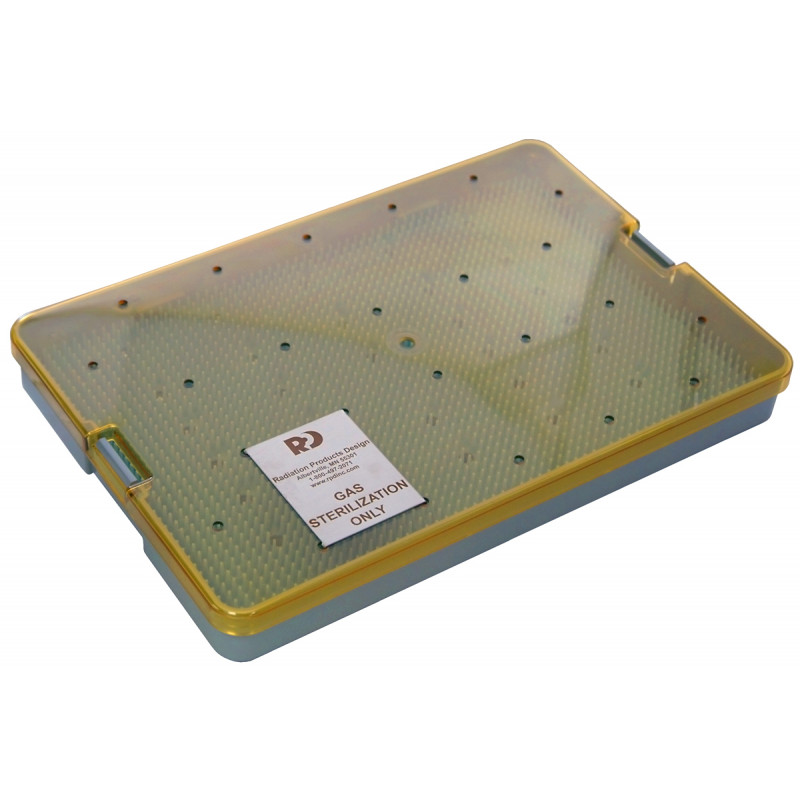

Large Sterilization Tray with Gas Nameplate

Open Section L: GYN / HDR / LDR Applicators & Accessories(PDF) to view related products. (Opens in a new tab)

Large Sterilization Tray with Gas Nameplate

These instrument trays are designed to encase instruments during processing and are safe for all standard sterilization methods: Autoclave/dry heat up to 360° F, ETO, and Cold Solutions.

These trays will last over 1000 cycles when properly handled and processed.

Use of these Instrument Trays must be in accordance with the operating instruction supplied with your particular sterilization equipment and in keeping with your particular sterilization equipment and in keeping with your hospital policy on sterilization validation. Several organizations (e.g., AAMI, AORN and ISO) publish guidance information on sterilization usage should you need additional information.

Periodic cleaning of the trays after sterilization process is recommended to prolong usable life.

Do not use if damaged

RPD sterilization trays can be customized to adapt to a wide variety of individualized configurations.

The uniquely engineered "grid system" allows for easy insertion of the special silicone instrument bars manufactured from medical grade silicone.

Sterilization trays are engineered with a rubber bristle surface to facilitate better steam penetration underneath the mats.

Sterilization trays are made to withstand common sterilization protocols including steam, gas, cold sterilizing solutions, and temperatures up to 360° Fahrenheit.

Sterilization trays are engineered and manufactured to the extend sterilization life cycles.

Advanced medical grade polymers are used to manufacture RPD trays.

Sterilization trays are designed to encase instruments for sterilization in steam and ethylene oxide.

An appropriate sterile barrier will be required to maintain sterility.

Specifications

Interior Dimensions: 15" W x 10" D x 1.5" H (38.1 x 25.4 x 3.8 cm)
Overall Size: 15.5" W x 10.3" D x 1.85" H (39.5 x 26.5 x 4.7 cm)
