L-Block Shield with Extra Wide View Window

Open Section S: PET Products, Nuclear Medicine, Workstations, Carts & Pigs(PDF) to view related products. (Opens in a new tab)

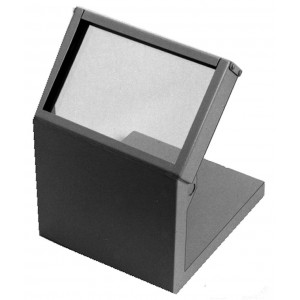

L-Block Shield with Extra Wide View Window.

The 1 1/2" thick Lead L-Block Shield provides exceptional protection to the clinician when loading iodine and iridium.  The face shielding is made of optically clear 12” W x 8” L x 2” thick lead glass, cantilevered for unimpaired viewing of the work area.  The leaded glass has a density of 5.2 g/cm³ to give maximum eye and face protection.

Specifications

Overall Size:  12 3/8” W x 13 1/2” D x 16 7/8” H
Viewing Angle: 45°
Front Face:  12 3/8” W x 11 3/16” H
Finish:  Axalta Beige Ridge Tan Powder Coating
Weight:  210 lbs

Leaded Glass
Leaded Glass Size:  12” W x 8” H x 2” T
Lead Glass Density:  5.2 g/cm³
Lead Equivalency:  2cm lead equivalent (¹³⁷Cs energy)

Shielding
Lead Thickness:  1 1/2”
Lead Density:  11.35 g/cm³
