Hydraulic Scissors Lift Table, 23.75 Inch Wide x 36 Inch Long

Open Section F: Calibration Products, Water Phantoms & Cases, Lift Tables(PDF) to view related products. (Opens in a new tab)

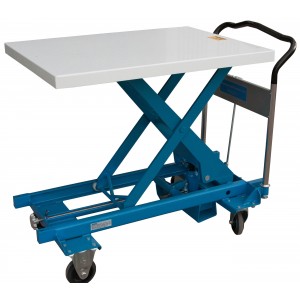

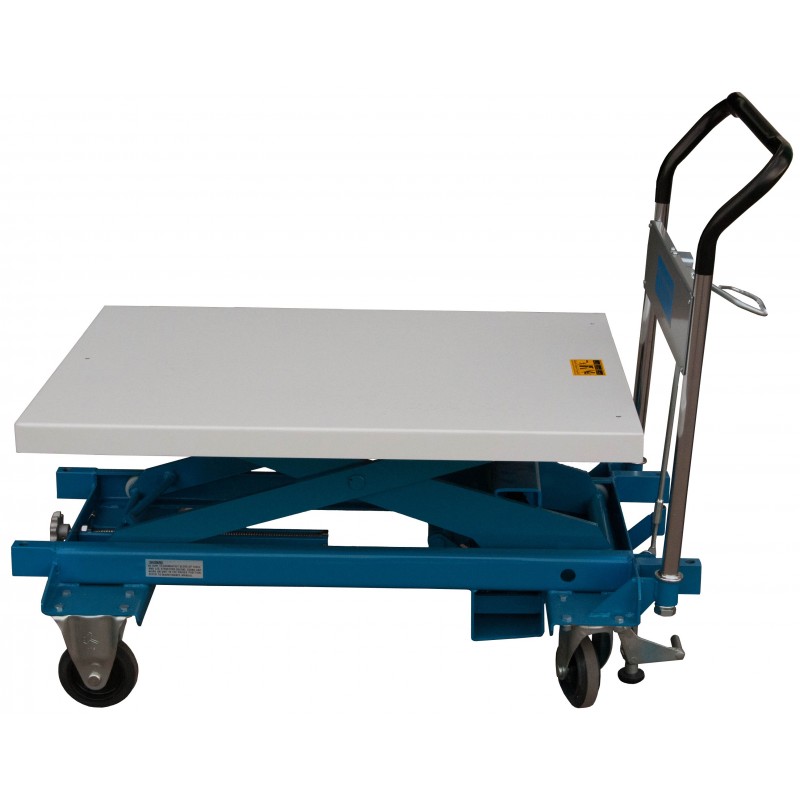

Hydraulic Scissors Lift Table, 23.75" Wide x 36" Long.

The Hydraulic-Scissors Lift Table is ideally suited to hold a water phantom.  A white platform top allows for easy viewing of the crosshairs through a water phantom with a clear bottom.

The lift table has three holes drilled in the platform to accommodate the corresponding leveling plate item 693-3624.

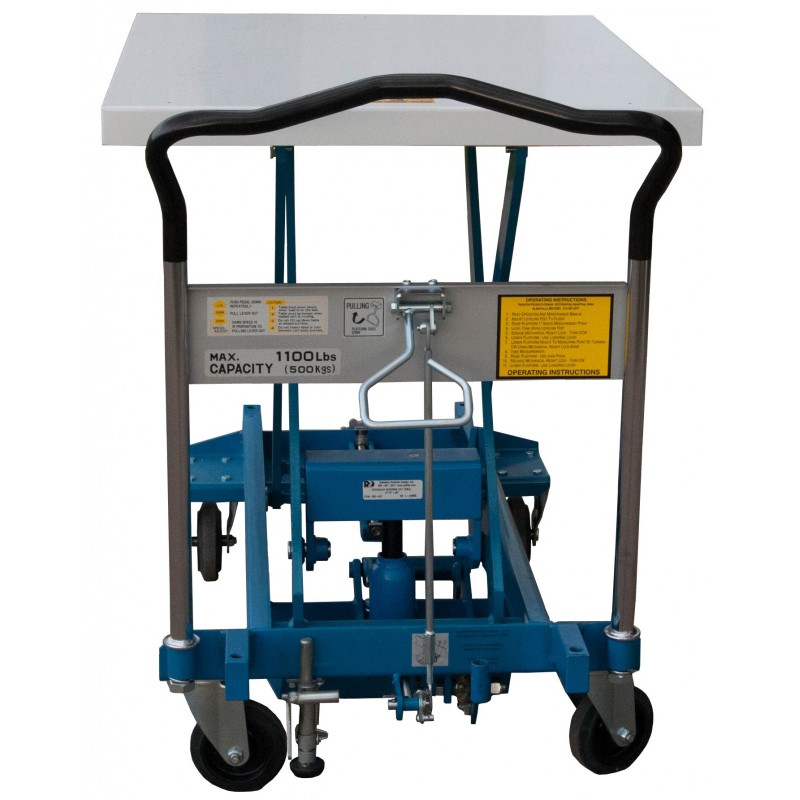

The Hydraulic-Scissors Lift Table utilizes a jack pedal to raise the platform.  A mechanical height lock will hold the platform at the desired height.  To lower the platform, use the lowering lever.

Use the parking brake to hold the hydraulic-scissors lift table in place.  Four heavy duty leveling legs are used to make sure the platform is level when being used.  For more precise leveling, use the leveling plate which is compatible with lift table.  The hydraulic-scissors lift table is easily moved by the four 5” diameter casters.

Specifications

Table Top Size:
Length:  36” (91.76 cm)
Width:  23.75” (60.54 cm)

Platform Height Adjustment:  11.8” to 36.6”
Handle Height:  37.8”,
Front Casters:  5” diameter rigid rubber
Rear Casters:  5” diameter, swivel rigid rubber
Capacity:  1,100 lbs.
Finish:  White platform - blue enamel frame
