Handheld Digital Barometer, M2000

Handheld Digital Barometer, M2000
Handheld Digital Barometer, M2000

Item Number :
469-457

Handheld Digital Barometer, M2000

Details

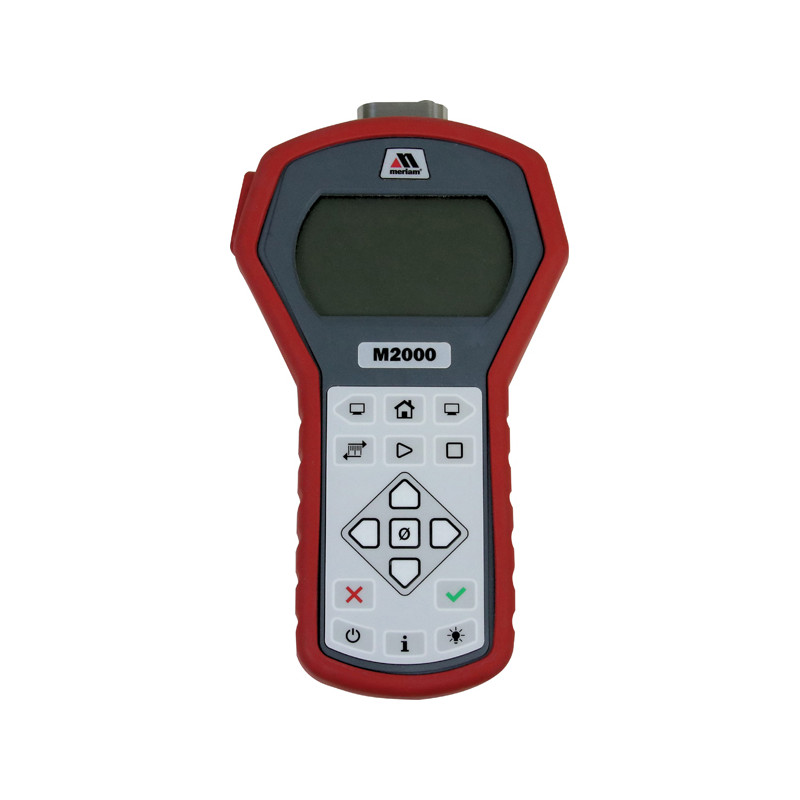

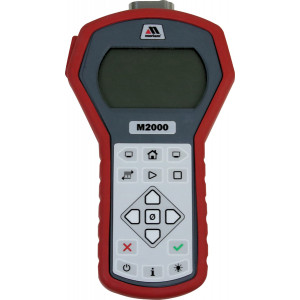

Handheld Digital Barometer, M2000


NovaLynx 230-M2000 is a portable pressure instrument with flexible features to meet many of your everyday pressure
measurement needs. This device features an easy and intuitive user interface with convenient pressure connections.



Features

• Easy to use and highly accurate
• One fixed sensor, optional tethered sensor
• 316SS media isolated pressure sensor
• Measurement range 30 psi absolute
• "Snapshot" hold function, mobile data logging
• Protective red boot
• NIST certificate included
• UL listed, CE compliant



Specifications

Pressure Accuracy: ± 0.020% Full Scale + 0.005% of Reading
Pressure Range: 0 to 30 psi Absolute
Measurement Units: psi, kPa, mmHg, inH2O, mbar
Display Resolution: Up to 6 digits depending on pressure unit selected

Temperature Specifications:
Storage: –20 °C to 70 °C (–4 °F to 158 °F)
Operating: –10 °C to 50 °C (14 °F to 122 °F)
Dimensions with boot:
Length: 9.8 in (248.9 mm) from manifold to end of boot
Width: 5.2 in (132.1 mm) at widest point with boot
Thickness: 2.3 in (58.4 mm)
Connections:
1/8” Female NPT 316SS USB
Port for Optional Tethered Sensor, with cable
USB, with cable
Power: 4 AA batteries
Weight / Shipping: 1.8 lbs (0.8 kg) / 3 lbs (1.4 kg)



Data Sheet
  • UL Listed True
