GAFChromic LD-V1 Film - 8"x10" (10/Box)
Item Number :
115-038
GAFChromic LD-V1 Film - 8"x10" (10/Box)
GAFChromic LD-V1 Film - 8"x10" (10/Box)
GAFChromic LD-V1 Film - 8"x10" (10/Box)
Gafchromic™ LD-V1 film is designed specifically as a QA tool for radiology in a processor-less environment. This film replaces the Gafchromic™ XRQA2 film. Gafchromic™ LD-V1 film is available in two sizes: 8” x 10” and 10” x 12” (10 sheets per package). It can be cut to various sizes and can be handled in room light.
Product Benefits and Key Features:
• No processor required
• Excellent tool for the processor-less environment
• Can be handled in room light
• Instant calibration results
• High data integrity
• Improved contrast
• Sensitive to dose range 2 cGy to 20 cGy
• Energy range is 40 kVp to 160 kVp
The configurations of Gafchromic™ LD-V1 film is a 4-layer laminate, substrate – adhesive layer – active layer – substrate
Layer Thickness*
orange polyester - 97 microns
adhesive layer - 20 microns
active layer - 25 microns
white polyester - 97 microns
* actual film layer thickness may vary slightly
Imaging detail with high resolution and contrast
State-of-the-art quality production techniques for Gafchromic™ LD-V1 film assure consistent and reliable high contrast. Results are easy to read; and data is easy to understand.
Gafchromic™ LD-V1 Dosimetry Film Applications

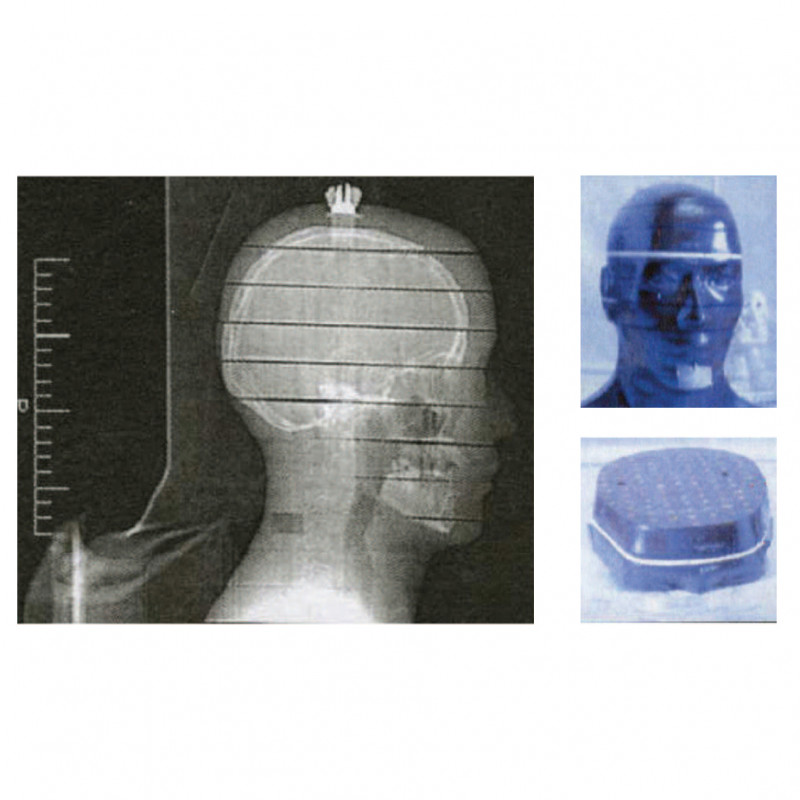

Head phantom dosimetry application
A typical head phantom radiation analysis is shown in the fourth image. Gafchromic™ LD-V1 film is easy to use, cost effective, and compatible with a wide variety of phantoms.
Chest phantom dosimetry application
A typical chest radiation analysis shown in the fifth image. Results taken from an in vivo study for a chest exam with 64 slices made with a CT scanner.

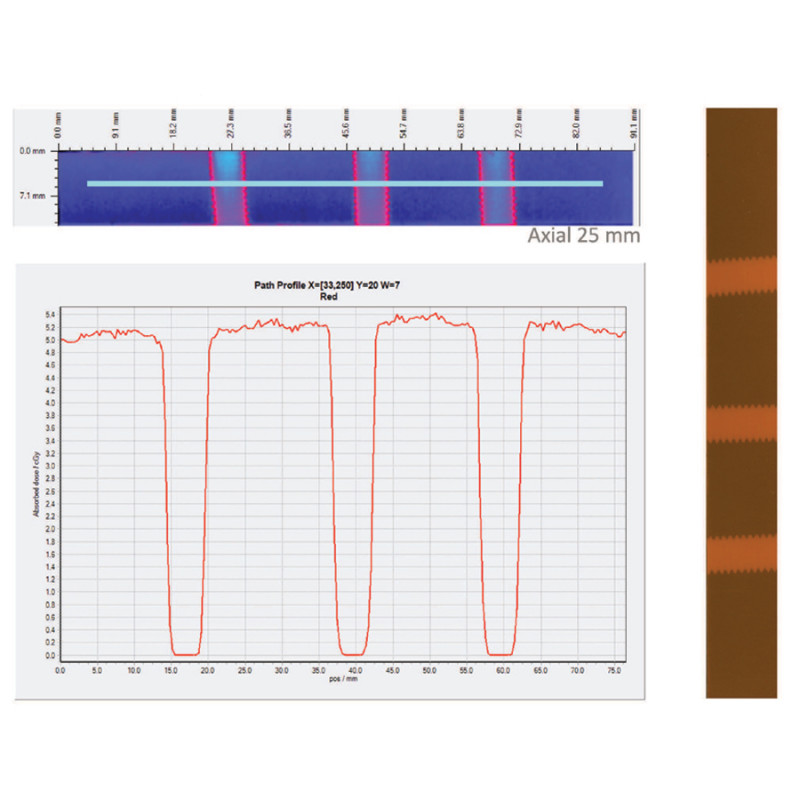

In the last image, actual results are shown of a strip of the Gafchromic™ LD-V1 film for a typical phantom exposure.
