Elekta Connexion™ Table 53cm Treatment Chair, Wide Couch

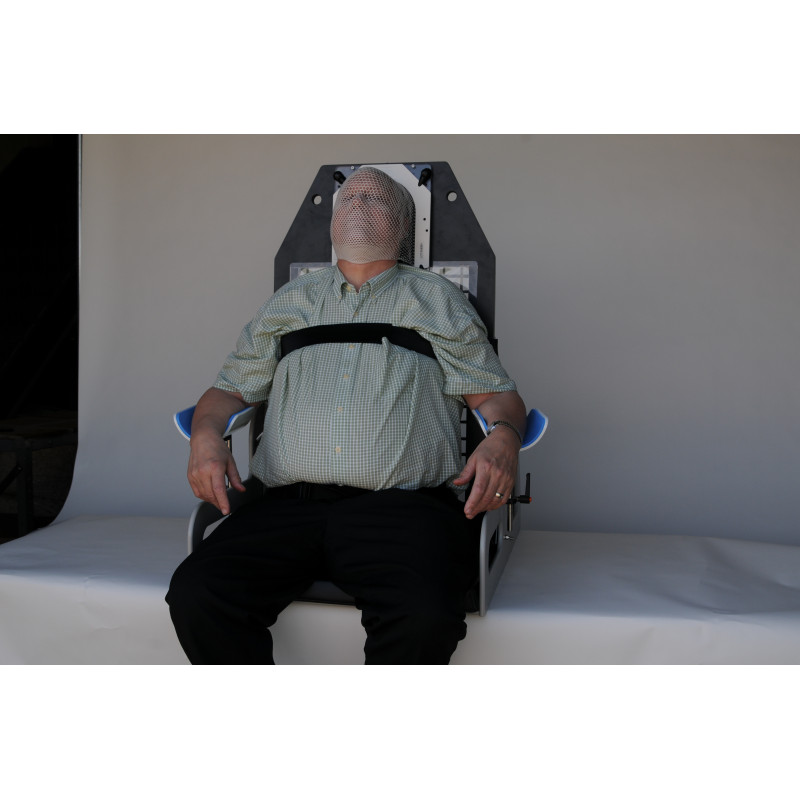

This versatile Treatment Chair provides upright positioning for specialty treatment cases of head, neck, thorax, breast, and lung or for patients who have difficulty lying supine for treatments.  The seated patient has improved comfort, increased lung volume and reduced respiratory motion.

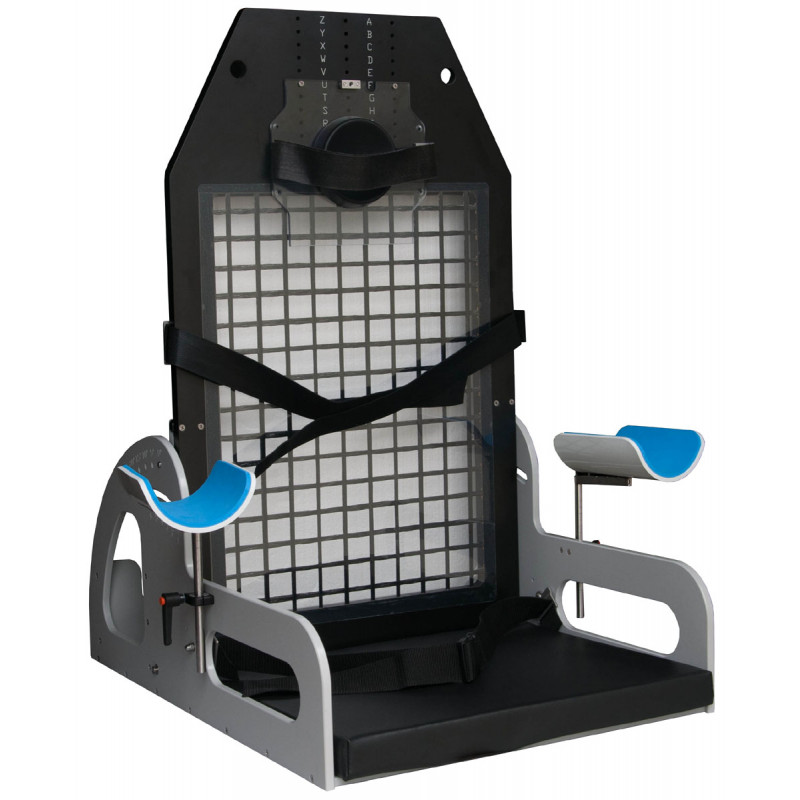

The Treatment Chair has an open grid back that allows for posterior treatment of the breast, lung and thorax. Patient safety features for the treatment chair include a seat belt and a Velcro® chest belt with three vertical position locations. Patient comfort is enhanced with a vinyl covered foam seat cushion which is tapered lower at the back to prevent the patient from sliding forward and giving more support under the thigh. Velcro® tabs attached to bottom of the seat cushion make it non-slip and easily removable from the chair when installing on the treatment table.

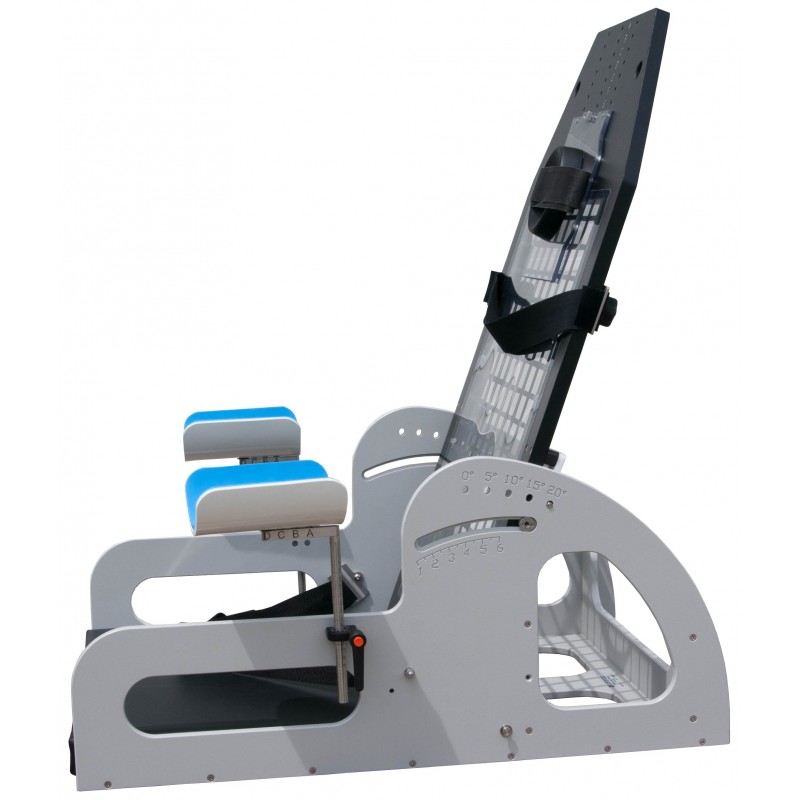

The Treatment Chair Base attaches to the front or side of the couch. The carbon fiber couch uses four plastic blocks using t-bolts and wing nuts, or to couch rails using four plastic rail blocks specific to the couch with t-bolts and wing nuts.  The chair front is designed to be referenced to the table edge or to the table rail for reproducibility.  The chair back is then secured to the chair base with a knob. Once the chair back is secured to the base the chair back can recline to five positive-locking positions between -5°, 0° and 20° (85° to 110°).   The chair back has a carbon fiber grid treatment window with 0.007” thick polyester covering to prevent skin protrusion through the grid. Under the carbon fiber and polyester the dose rate is less than 1 mm of water equivalent build-up.

The Treatment Chair includes a Base plate with a Round Head Cup and Straps. The straps can be mounted in three different positions over the head (Forehead, Nose or Chin). The Base plate is typically mounted on the Treatment Chair Back in positions A to M. Positions N to Z are used when the Base plate is rotated 180 degrees for taller patients. A notch in the Base plate references the Base plate location on the Treatment Chair. The Base plate has two location pins and is secured to the Chair Back with a knob when the location is determined.

The Treatment Chair includes the Arms Down Assembly that consists of two stainless steel L-Bars and Arm Cradles. The L-Bar has vertical markings of 1-15 cm and slides into a locking clamp with rotation indexing of 1-12 locations. The horizontal leg of the L-Bar has 4 hole locations, A-D, for placement of the Arm Cradle. The Arm Cradle is lined with a foam pad.

Optional Items

Item 254-050:  The Base plate for a U-Frame Head Mask accommodates a Silverman Head and Neck Support and a Standard U-Frame Thermoplastic Head Mask. A Spacer is also included if needed. This Base plate is also notched for position location and has two location pins and is secured to the Chair Back with a knob. The Base plate is typically mounted to the chair back in positions A to M. Positions N to Z are used when the Base plate is rotated 180 degrees for taller patients. The Base plate also has two positions, A and B, for the U-Frame Clamps. ‘A’ is used when the Base plate is in the A-M position and ‘B’ is used when the Base plate is used in the N to Z positions. Use standard procedure for forming head mask.

Item 254-070:  The Arms Up Assembly includes two vertical black posts, adjustable elbow support and handles. Each post is marked R or L indicating chair or patient right or left. Each post has a keyhole slot at the bottom which fits over a pivot pins located at the bottom center on each side of the chair. The post is then secured with a knob into an adjustable sliding lock The Arm posts can be positioned in any of 6 anterior positions, indicated by the markings of 1-6 on the side of the chair and locked with a knob. The elbow support and handles can be moved vertically to fit the patient. The elbow support can be indexed from 0-33 cm and the handles can be indexed from 1-35 cm.

Specifications
Back Opening:  20” Wide x 24.5” High (508 x 622 mm)
Polyester covering Thickness:  0.007” (0.1778 mm)

Surface Exposure at 6 MV:
No reading was obtained under the polyester only.
Under the carbon fiber and polyester the dose rate is less than 1mm of water equivalent build-up.

Seat Size:  25” Wide x 17.5” Deep (635 x 444 mm)
Chair Base Weight:  28 lb (12.7 kg)
Weight with Chair Back and Arm-Down Supports:  47 lb (21.3 kg)
Total Weight with All Parts:  57 lb (25.9 kg)

Special Ordering Instructions: The treatment chair is made-to-order for compatibility with your specified treatment table. Current specified treatment chairs include:

254-010 Varian IGRT 53cm Couch Base

254-011 Varian Clinac IX Couch Base

254-012 Q-Fix K Vue 53cm Wide Couch Base

254-014 Brainlab ExacTrac 6D Couch Base

254-015 Elekta Precise Table 50cm Wide Couch Base (with Rails)

254-016 Elekta Connexion Table 53cm Wide Couch Base

254-020 Siemens Primus ZXT 50 cm Wide Couch Base

Other Custom Treatmen Chairs Couch Sizes are Available upon Special Request

Made to Order:
Download 254-TreatmentChairOrderFormPDF or 254-TreatmentChairOrderFormDOC and fill it out electronically.
or Print out the form, complete and scan it.

Send this form with your order of the 254-000 part number.

All product names, trademarks and registered trademarks are property of their respective owners.
