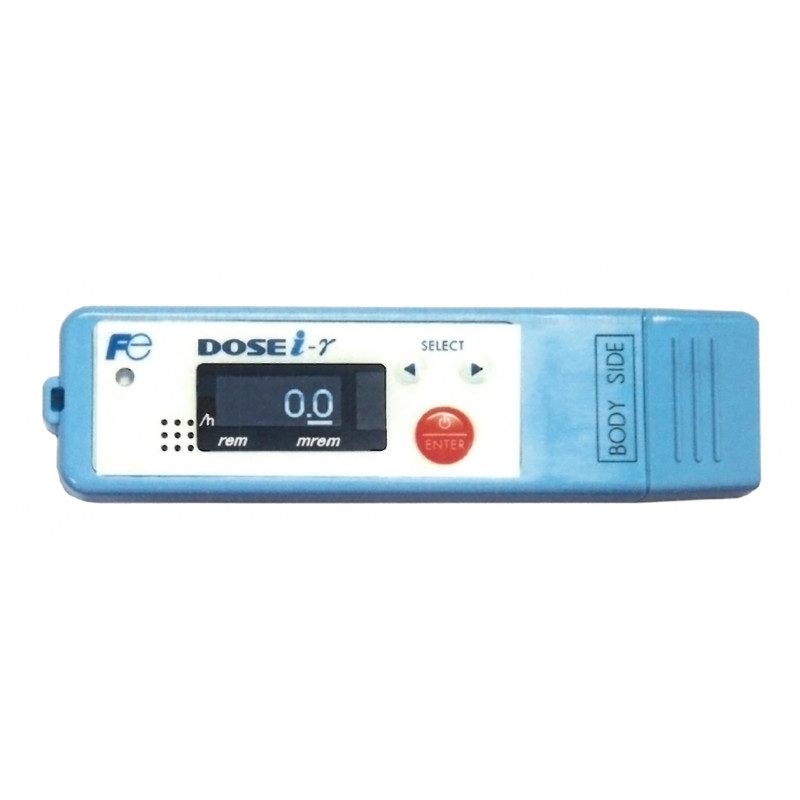

Dose-i Electronic Personal Dosimeter - mSv
• Small and Lightweight
• Easy to read display
• Simple Operation
• Excellent for healthcare diagnostic imaging where ionizing radiation is present, visual and audible dose and dose-rate alarms
• Ideal for x-ray and nuclear medicine environments
• Measures cumulative dose and dose rate of gamma radiation exposure
• Precision engineered for safety and reliability to the highest standard
• Measurement range: 0.001-999.9mSv (0.1-99.99mrem)
• Dose measurement: 0.001-999.9mSv/h (0.1-99.99mrem/h)
• Energy range: 35keV to 3MeV
• Dosimeters are nonreturnable
• Battery lasts for up to 720 hours (one CR2450 battery included)
Specifications
Radiation Measured: Gamma (X) rays
Detector: Silicon semiconductor
Measurement Range:
0.001mSv to 999.9mSv (0.1 to 99.99mrem)
0.001mSv/h to 999.9mSv/h (0.1 to 99.99mrem/h) for dose measurement
Display Range:
Accumulated Dose: 0.001mSv to 999.9mSv (0.1mrem to 99.99mrem)
Dose Rate*: 0.001mSv/h to 999.9mSv/h (0.1mrem/h to 99.99mrem/h)
Accuracy: < ±10% (0.01mSv to 999.9mSv (1mrem to 99.99rem), 137Cs)
Energy Range: 35keV to 3MeV
Angular Response: < ±20% (Up to ± 60 degree vertical and horizontal, 137Cs)
Dose Rate Linearity: < ±10% ( 137Cs)
Display: 4-digit OLED (0.001 to 999.9)
Indication Data: Dose, Dose rate, Operating time, Alarm
Alarm Volume: 60dB (at 20cm)
Data Storage: Trend data (Up to 600 data)
Power Supply: Primary Battery (CR2450) x 1
Battery Lifetime: 720 hours or more (without alarm /communication)
Communication: Infrared communication (Option: communication cable and software)
Operating Temperature: 14°F to 104°F (-10° to 40° C)
Operating Humidity: Up to 90%RH
Dimensions: 1.2”W x 4.3”H x 0.5”D approx (3 x 11 x 1.2 cm approx.)
Weight: 0.13lb approx (60g approx.)
*Note: Dose-i indicates rough value for dose rate measurement in low radiation field such as less than 1mSv/h (100mrem/h), so it should be used just for reference.
