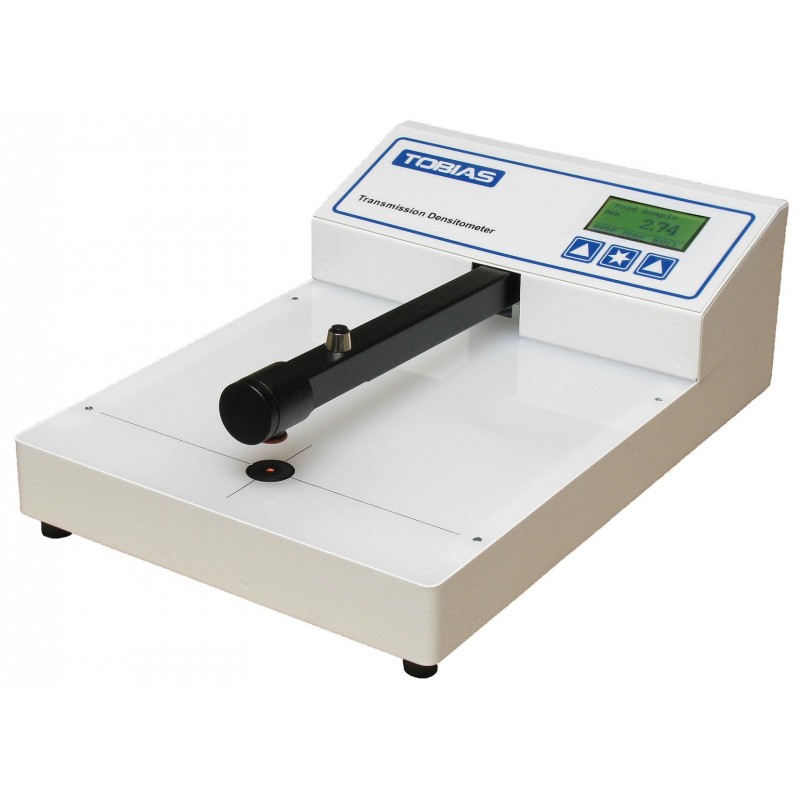

TBX1000™ Transmission Densitometer.

The TBX1000™ Transmission Densitometer measures ISO Visual diffuse Optical Density (OD) to 6.00D.  This wide measuring range allows evaluation of many types of film, laminates, and substrates.  The data can be uploaded to spreadsheets via the USB port.  To meet special requirements an optional filter carrier may be supplied allowing supplementary filters to be used to isolate a portion of the spectrum that may be of interest.  The TBX™ can show deviations from a stored reference value for all functions.

Features:

• Soft key menu operation

• Advance optical system to meet various industries specifications

• 7.5 inch throat to measure large samples

• Readings are very repeatable with a high degree of accuracy

• Optional band pass filter

• USB port standard

• Software Calibration

• Switchable LED table lamps

• Excellent for measuring optical densities of metalized films.

Specifications
Optical Design:  ANSIPH2.19
Display:  Graphical LCD (128x64 pixel)
Apertures:  1, 2, 3mm
Throat Length (Arm):  7.5 inches (191mm)
Output Port:  USB
Power:  12V via universal 110/220 Adapter
Measuring Range:  0 to 6.00D
Accuracy:  ±0.02D
Precision:  ±0.01D
Warm-up Time:  None
