Delclos Uterine / Vaginal Type "B" Applicator Set with Sterilization Tray.
Delclos Uterine / Vaginal Type "B" Applicator Set with Sterilization Tray.
The Delclos Uterine/Vaginal Type “B” Applicator was originally manufactured by Radium Chemical then Radium Accessories.
The Delclos Uterine/Vaginal Afterloading Applicator and Dome Assembly are used primarily to irradiate the vagina where the tumor extends downward from the cervix along the vaginal wall. The acrylic vaginal cylinders are 2.5 cm long permitting a maximum assembled length of 15 cm and come in diameters from 2.0 cm to 4.5 cm to accommodate different vaginal sizes. The cylinders have four stainless steel pins .1” from edge to identify the location radiographically and have an inside groove to facilitate removal with the cylinder extractor. The 15°, 30° and 45° S.S. tandems are marked every 2 cm over an 8 cm range. The dome cylinders are threaded to accommodate a 15 cm long threaded tandem.

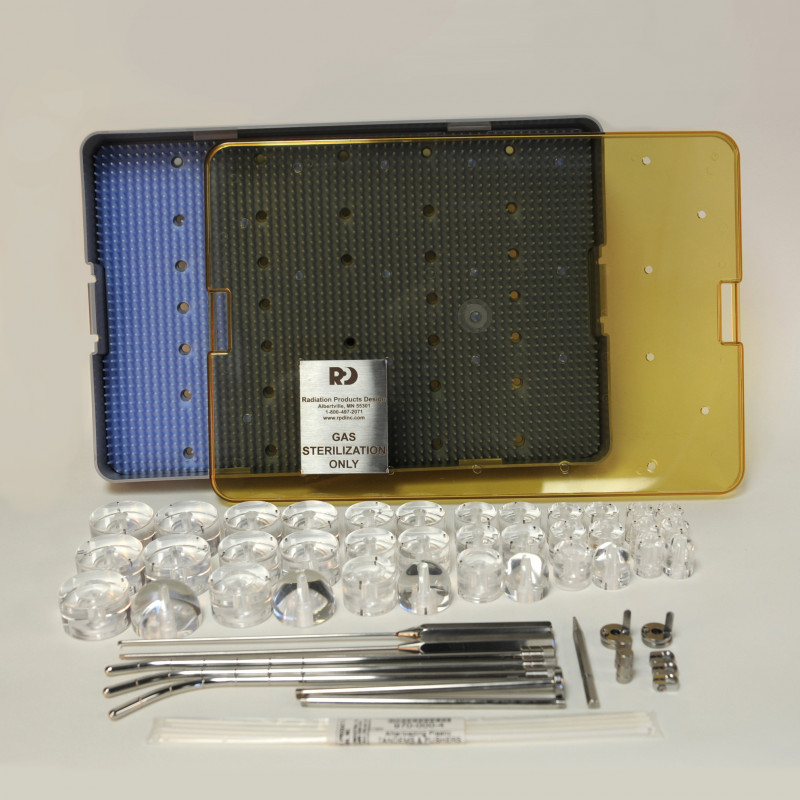

The Delclos Uterine / Vaginal Afterloading Applicator Set with Type “B” Dome Assembly Includes:
(3) S.S. Tandems with caps – 15°, 30°, 45°
(3) S.S. Cervical stops
(1) 15 cm Threaded S.S. Tandem with Cap for Dome
(2) S.S. Flagged Cylinder Stop
(1) S.S. Flat End Vaginal Tandem with Cap
(4) Plastic Tandems and Pushers
(2) 3/32” S.S. Allen Wrenches (short and long handle)
(1) S.S. Cylinder Extractor
(6) Threaded Acrylic Domes - 2.0, 2.5, 3.0, 3.5, 4.0, 4.5 cm
(5) Cylinders for Flat End Tandem - 2.5, 3.0, 3.5, 4.0, 4.5 cm
(5) 2.0 cm Acrylic Cylinders
(4) Acrylic Cylinders of each - 2.5, 3.0, 3.5, 4.0, 4.5 cm
(1) Sterilization Tray
