Delclos Mini-Ovoid Long Handle Bracket Pivot Applicator Set with Sterilization Tray

Open Section L: GYN / HDR / LDR Applicators & Accessories(PDF) to view related products. (Opens in a new tab)

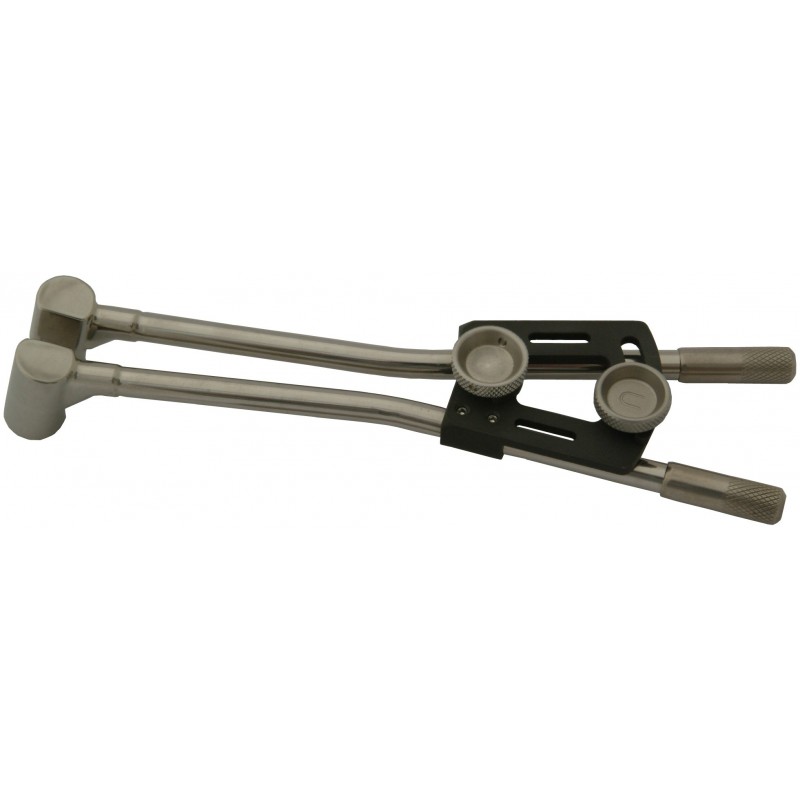

Delclos Mini-Ovoid Long Handle Bracket Pivot Applicator Set with Sterilization Tray.

The Delclos Mini-Ovoid Long Handle Afterloading Applicator Set with Bracket Pivot was designed for the patient with a narrow or tortuous vault that will not accommodate the round ovoid of the standard Fletcher-Suit Applicator.  The ovoid is flattened medially to accommodate a very small anatomy.  The flattened area results in an increased dose to the cervix.  The handle is 19 cm long to the ovoid center.  The ovoid’s are 12.8 mm in width, 30 mm high, have a 15° angle and do not have shielding.  The applicator uses a two piece adjustable handle pivot bracket with a tandem support hook.  The applicator is completely Heli-Arc welded at all joints for unbreakable joints.  The applicator bucket carriers accommodate Cesium¹³⁷ sources up to 3.2 mm diameter x 20 mm long.  A hole in the bucket carrier allows the user to push the source out, if the source gets stuck inside the bucket carrier.  The stainless steel tandems are marked every 2 cm over a 12 cm range.  Optional items available include Tungsten Dummy Sources (Item 985-030), 2.0 cm, 2.5 cm and 3.0 cm diameter Tungsten Shielded High Temperature Plastic Ovoid Caps (Items 970-650-40 to 970-650-45) and Cesium¹³⁷ Tube Sources (Items 067-6510 to 067-6540).

Delclos Mini-Ovoid Long Handle Bracket Pivot Applicator Set Includes:

(1)  Applicator with Bracket Pivot and Two Bucket Carriers

(4)  Stainless Steel Tandems and Caps (15°, 30°, 45°, and 60°)

(1)  Cervical Stop

(2)  Flagged Cervical Stops

(1)  3/32" Allen Wrench

(1)  1/16" Allen Wrench

(4)  Plastic Tandems and Pushers for Sources

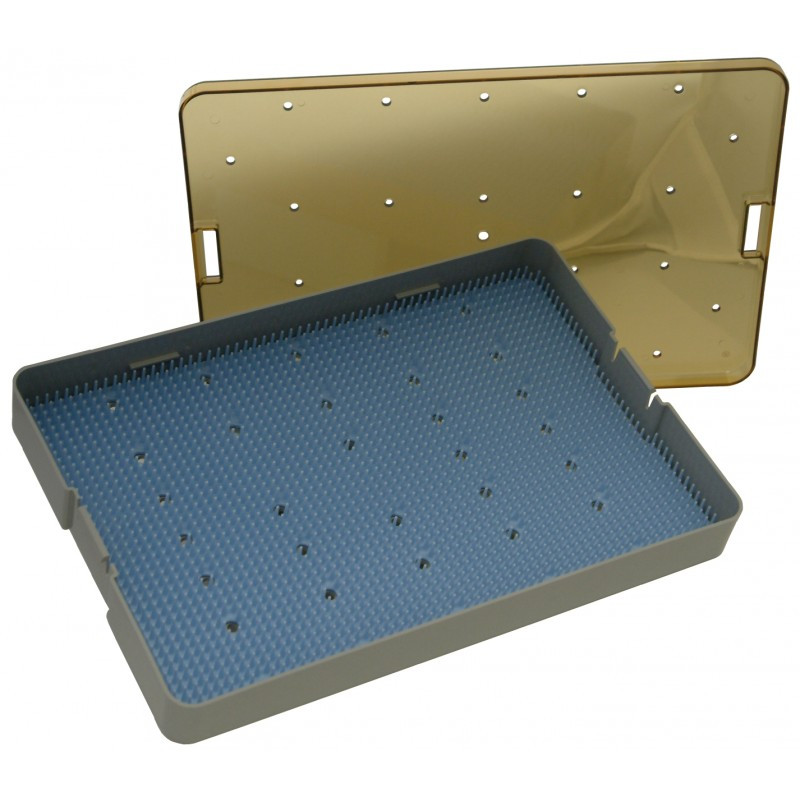

(1)  Sterilization Tray
