Acrylic CT Dose Phantom and Carrying Case

Open Section G: CT Simulators, CT Products, Chambers, Lasers, Phantoms(PDF) to view related products. (Opens in a new tab)

Acrylic CT Dose Phantom and Carrying Case

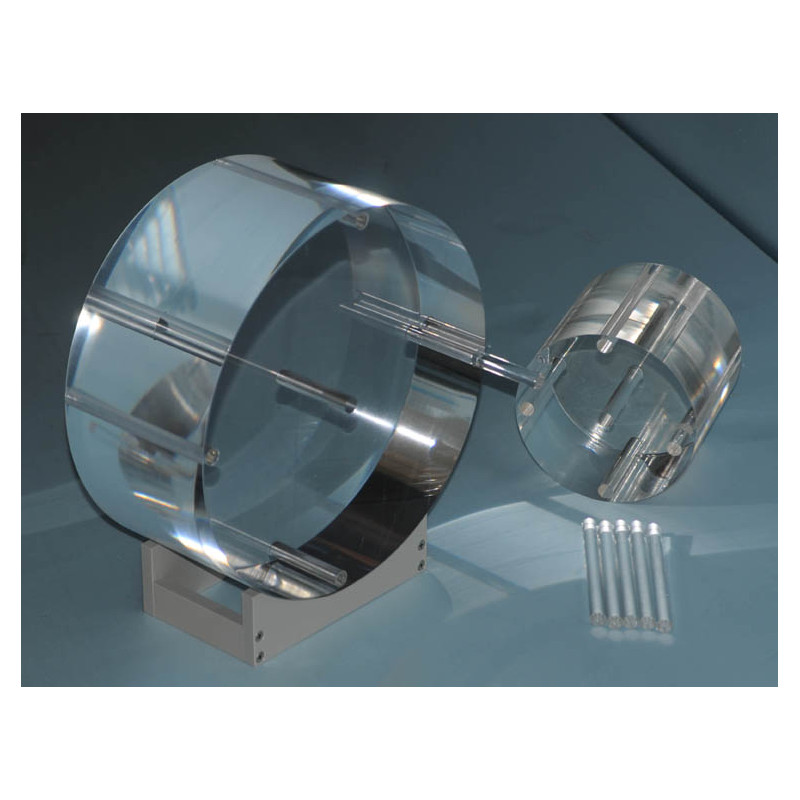

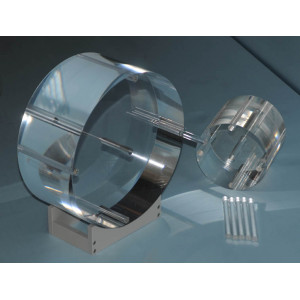

The CT Dose Phantom consists of two 15 cm thick Solid PMMA disks measuring 16 cm (head) and 32 cm (body) in diameter.

• Usable on all CT scanners

• Head and abdominal configurations included

• Made from acrylic with a density of 1.19 gm/cc

• Includes 10 PMMA plugs

• 1.31 cm inside hole dia. sized for standard CT Dose probes

• Includes support stand

• Rugged foam lined carrying case included

The disks have five through-holes with an inside diameter of 1.31 cm to accommodate standard CT dose probes and five acrylic rods to plug the holes not in use.  One hole is at center and four are around the perimeter, 90° apart and 1 cm from hole center to the outside edge of the phantom.

The head and body phantoms along with the ten acrylic rod plugs are packaged in an extremely rugged foam lined carrying case.
