Count Rate Calibrator, Source Holder

Open Section S: PET Products, Nuclear Medicine, Workstations, Carts & Pigs(PDF) to view related products. (Opens in a new tab)

Count Rate Calibrator, Source Holder.

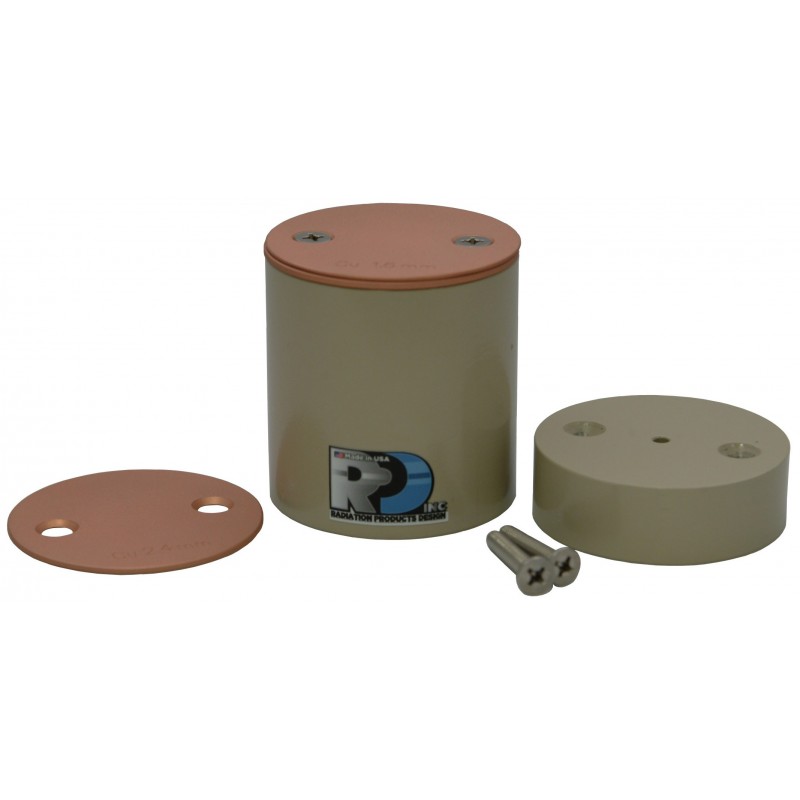

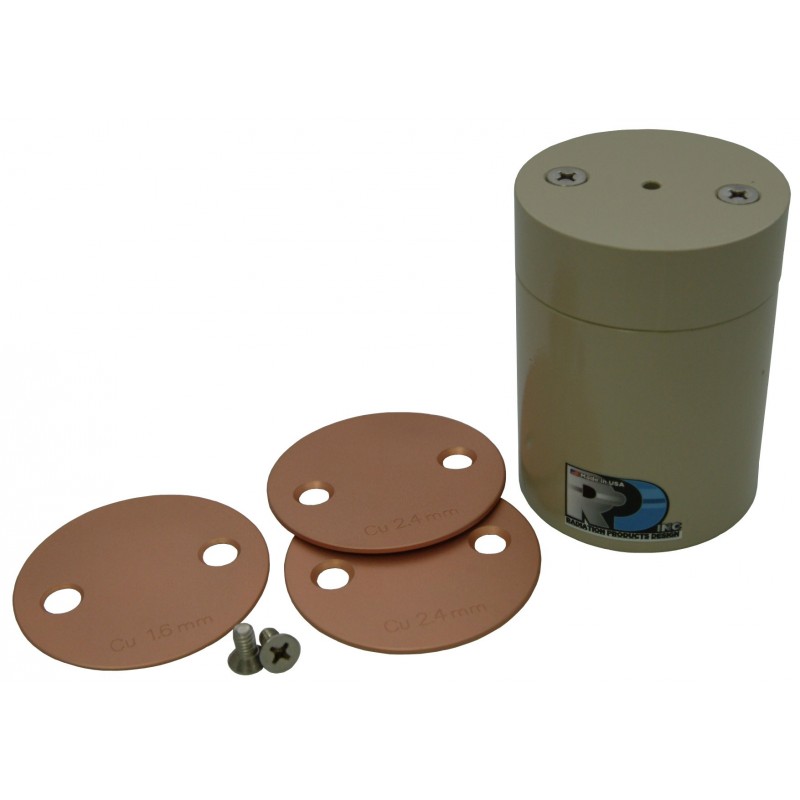

This is a source holder for multiple spatial window registration measurements.  The holder and cover are made of 1” lead treated with a smooth tan powder coating finish.  Three copper plates are included with the source holder.  One copper plate is 1.59 mm thick and two plates are 2.38 mm thick.  Two Pan Head screws hold the copper plates and cover on the holder.  The allen wrench is included also.  The handle is optional and ordered separately.

Specifications
Overall Dimensions:  3.14” diameter x 4.2” H (7.98 cm diameter x 10.67 cm H)
Inside Hole Dimensions:  1.075” diameter x 2.2” H (2.73 cm diameter x 5.59 cm H)
Lead Thickness:  1” Lead
Finish:  Axalta Beige Ridge Tan Powder Coating

Copper Plates:
One (1) Plate:  7.98 cm diameter x 1.59 mm T
Two (2) Plates:  7.98 cm diameter x 2.38 mm T

Weight:  12.8 lbs
