Centering Bar, Slotted Ends for Civco Couch Align Bumps

Open Section U: Quality Assurance Devices, GARD, ISIS, Couch Cubes(PDF) to view related products. (Opens in a new tab)

Centering Bar, Slotted Ends for Civco Couch Align Bumps

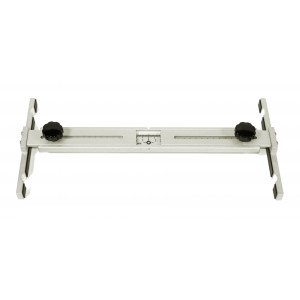

This bar is used to properly align the ISIS Phantom Cube (681-100) on a table.  The bar is adjustable from 37 cm to 68 cm wide.  There is a scale on the bar with zero at center.  The scale has mm and cm markings on both sides of zero.  T-squares at each end of the bar are placed on the side of the couch and adjusted so each side is equal distance from zero on the scale.  Knobs at both ends of the bar are loosened and tightened to make adjustments.  There is an alignment pin on one side of the bar to connect it to the leveling plate (681-159).  An alignment groove on the other side bar is to connect the Alignment Bar (681-150) to the Adjustable Centering Bar.
