Block Casting Station, 85" 120 VAC with No Refrigeration

Block Casting Station, 85" 120 VAC with No Refrigeration

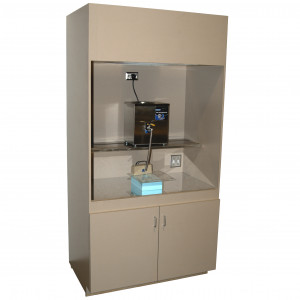

The Block Casting Station maximizes the size of your mold room and can improve labor and production efficiencies while improving block quality. The complete station measures 43.5" W x 28" D x 85" H (110.5 x 71 x 216 cm).

Features:

• A 1.5 gallon alloy dispenser with a digital readout, precise digital temperature control and a no-drip heated ball valve dispenser. The alloy dispenser base plate is a roller carriage which allows for easy side-to-side movement over a range of 28" over the non refrigerated aluminum cooling plate.
• A large capacity, precision surfaced non refrigerated aluminum cooling plate is 42-7/8" x 23 5/16" (109 x 59.3 cm) that accommodates up to 6 photon block trays.
• The sturdy cabinet has a convenient 23" storage space on the left and right side underneath the cooling plate. The left side storage measures 20.5" W x 23" D x 23" H (52 x 58.4 x 58.4 cm) and the right side storage measures 20.5" W x 22 1/4" D x 23"H (52 x 56.5 x 58.4 cm). All front and sides of the cabinet are covered with Formica brand oyster gray laminate. The back side is covered with a Formica brand phenolic resin backing sheet.
• An electronic air cleaner provides safer, cleaner air in your mold room - 98%efficient at .03 microns. Run at low speed.
• Power Cord: 8' (2.4m) 3Wire
• One Power Switch turns on electronic air cleaner
• No plumbing is required.

Overall Dimension: 43.5" W x 28" D x 85" H (110.5 x 71 x 216 cm)

Power Requirements:

Alloy Dispenser: 120 VAC, 665 WATT

Air Cleaner: 120 VAC, .4/.6 Amp, 36 WATT

This Air Cleaner is Not California Air Resources Board (CARB) Certified.
