Beam Spoiler Frame for Total Body Irradiation

Beam Spoiler Frame for Total Body Irradiation
Item Number :
495-010

Beam Spoiler Frame for Total Body Irradiation.

Details

Open Section B: Bolus, Brass Mesh, Aquaplast, Spoilers, Contouring(PDF) to view related products. (Opens in a new tab)

Beam Spoiler Frame for Total Body Irradiation.

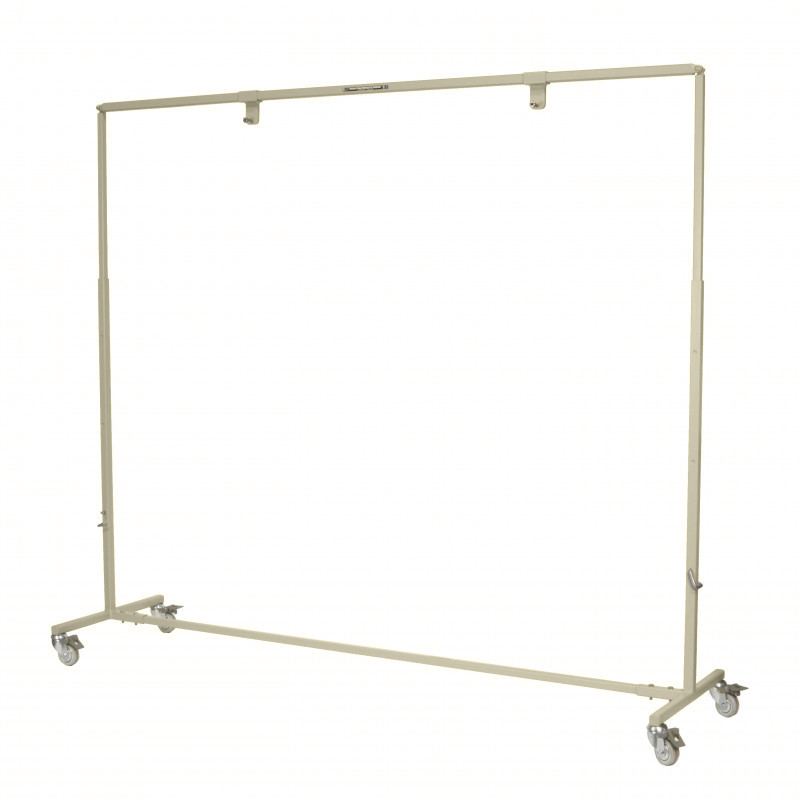

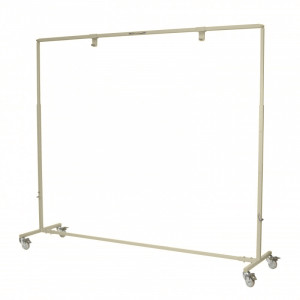

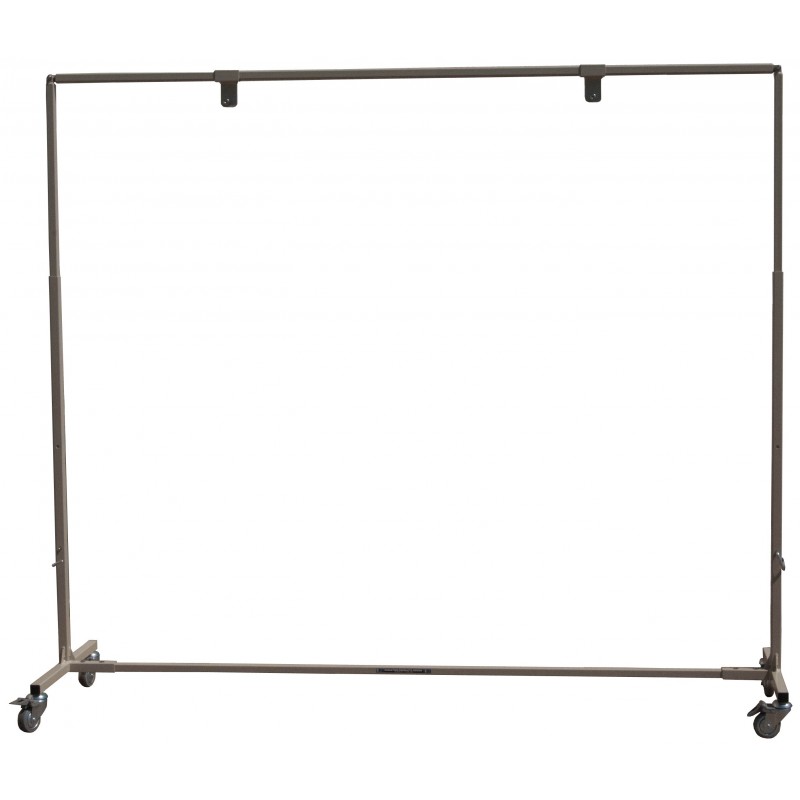

The Beam Spoiler Frame is designed to hold and position beam spoilers for Total Body Irradiation.



Features

 • Supports up to 1" total thickness of spoiler plates
 • Four locking swivel casters
 • Telescoping legs
 • Adjustable vertical and horizontal hanging support

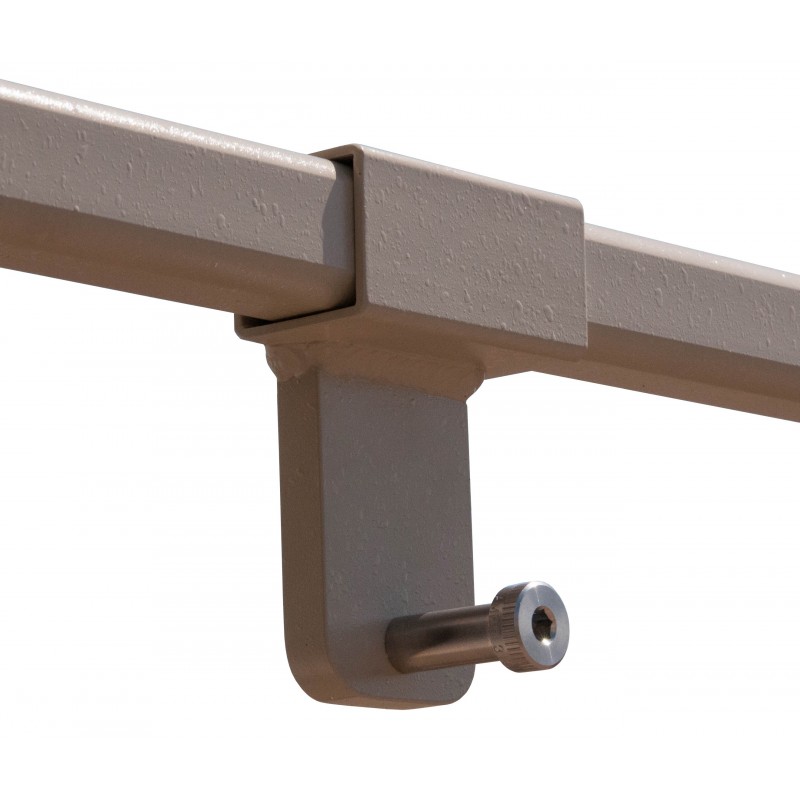

This frame can support up 1" (2.54 cm) total thickness of spoiler plates, and is rated to carry 250 pounds (114 kg). The telescoping legs allow for a 13" (33 cm) vertical range of movement. Two adjustable hangers on the top horizontal bar are positioned to hold a beam spoiler in either the vertical or horizontal direction. Four 3" (7.62 cm) diameter swivel locking casters allow for easy movement of the Beam Spoiler.  The frame can be dismantled for storage.  The frame is made of sturdy square steel tubing.



Optional Beam Spoiler plates. (See Accessories tab)

The optional Beam Spoilers are available in both acrylic or polycarbonate, at 0.375" (0.95 cm) or 0.50" (1.27 cm) thickness.  Our beam spoiler plates have two key holes on both the 60" (152 cm) side and on the 84" (213.4 cm) side to allow for positioning on the frame in either direction.  The key holes can also be used to hang the beam spoiler from wall hooks for storage.




Optional Short, Top & Bottom Bars (Item # 495-012) (See Accessories tab)



Top and bottom bar replacements are available to change the profile of the beam spoiler frame.


Specifications of Frame
Dimensions: 91.5 x 24 x 80.4 to 93.4 in (232.4 x 61 x 204.2 to 237.2 cm)
Weight: 88 lbs (39.9 kg)

Weight Rating: 250lbs (113kg)
Plate Hanger Depth: 1" (2.59cm)
Finish: Axalta Beige Ridge Tan Powder Coating

See documents tab for drawing/diagram.
