Adjustable Patient Loading Shield

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

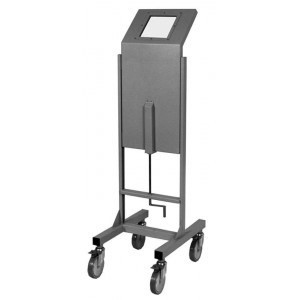

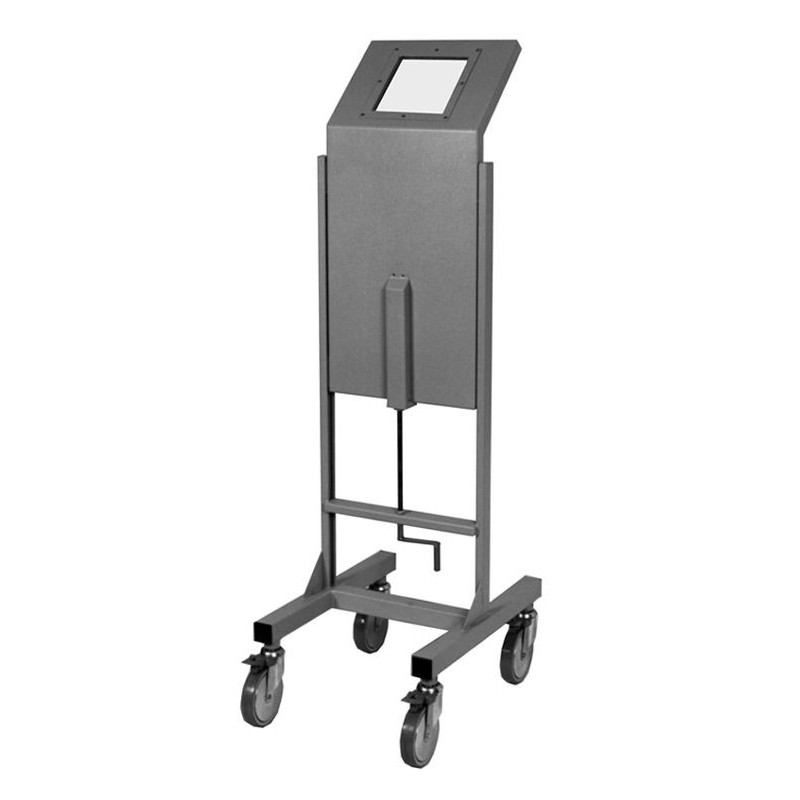

Adjustable Patient Loading Shield, Afterloading or Intravascular.

The Adjustable Patient Loading Shield provides complete protection to the head and torso.  It rolls easily into position on four 6” diameter swivel, locking, ball bearing casters.  The shield (16” wide x 34” high x 1” thick) can be adjusted over a 10” range from a shield height of 54 1/2” to 64 1/2”.

Specifications
Lead Glass Size:  8” sq. x 2” T
Lead Glass Density:  5.2 g/cm³
Lead Size:  16” W x 34” H x 1” T
Overall Size:  19” W x 24 1/2” D
Height Adjustment:  54 1/2” to 64 1/2” H
Base Height:  10 1/2”
Casters:  Four 6” dia. swivel locking ball bearing.
Finish:  Axalta Beige Ridge Tan Powder Coating
Weight:  250 lbs
