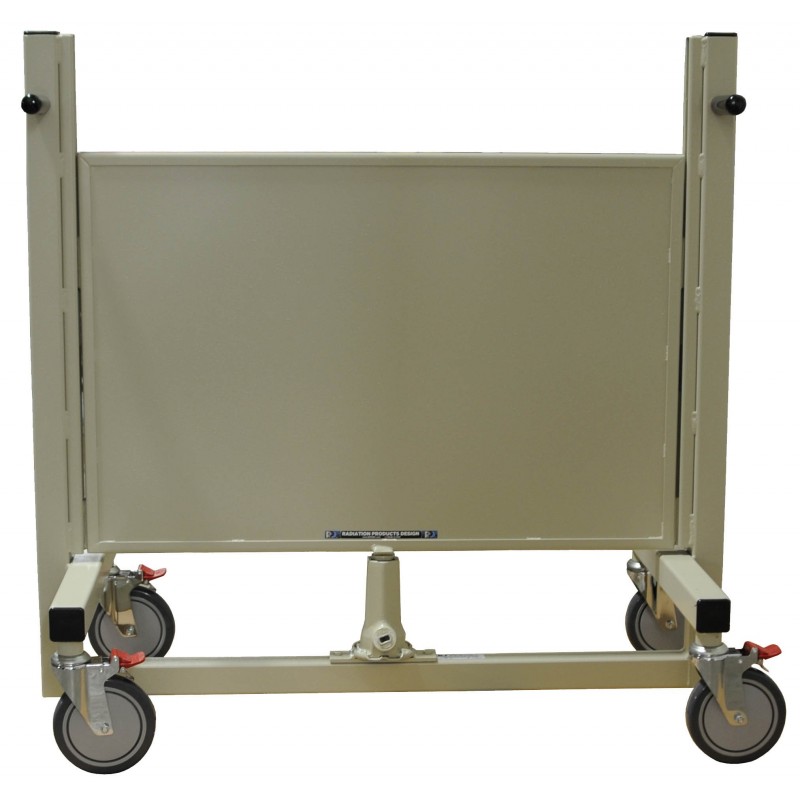

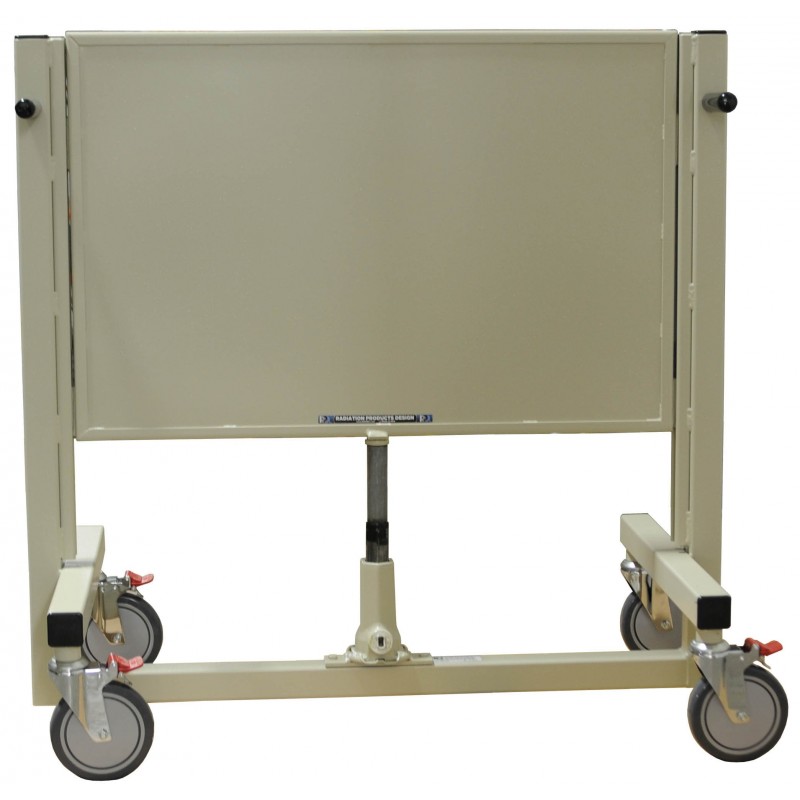

Adjustable Height Intravascular 5/8"pb Shield, 52" W x 35" D

Open Section W: Shielding, Mobile L Blocks, Carts, Workstations, Carriers & Pigs(PDF) to view related products. (Opens in a new tab)

Adjustable Height Intravascular 5/8"pb Shield, 52" W x 35" D

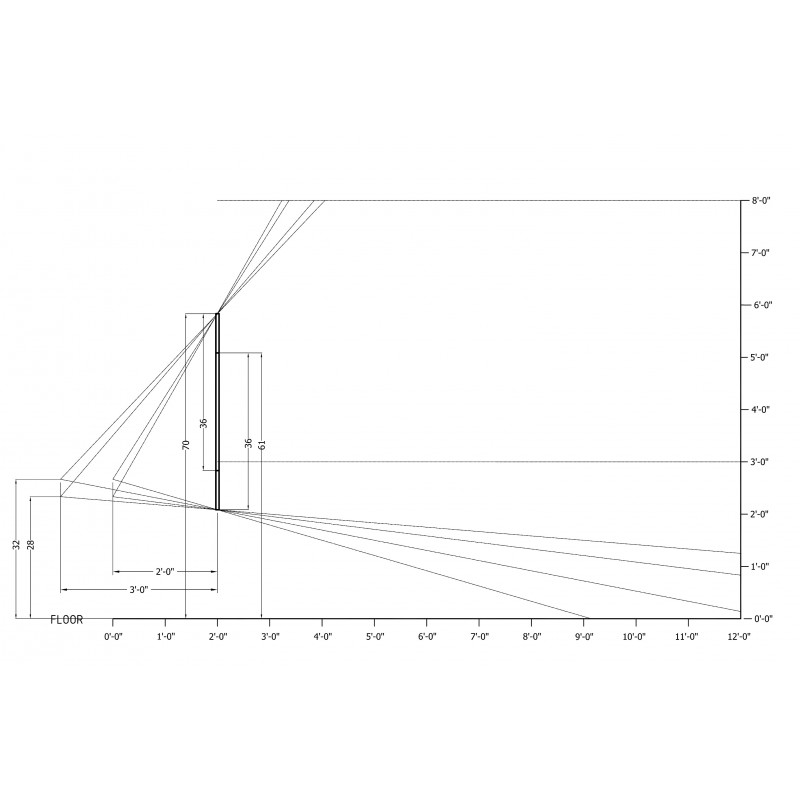

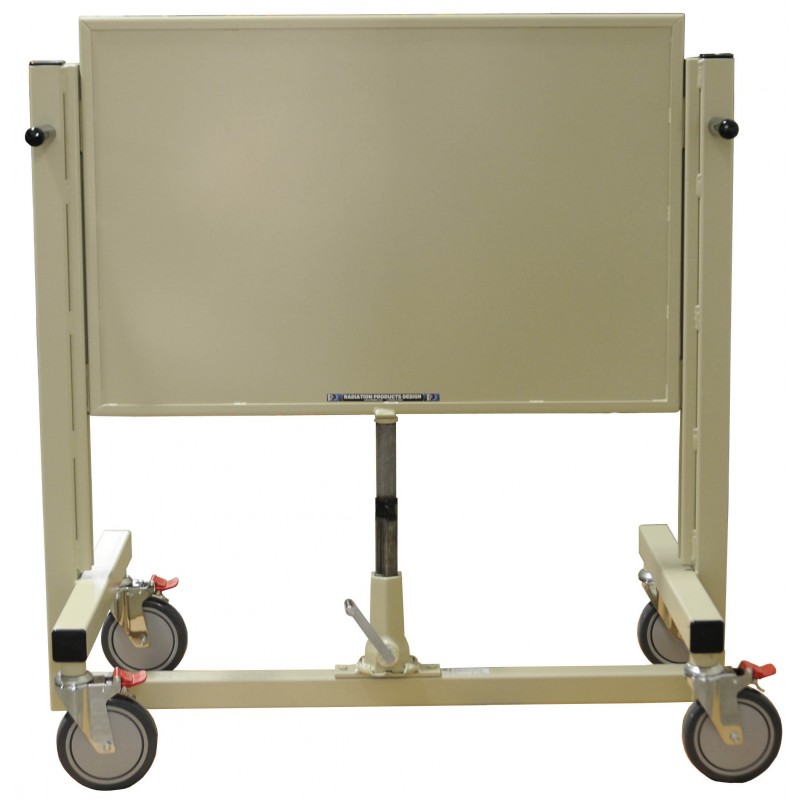

The adjustable height shield is built with a 9” range of movement.  When ordering the adjustable shield, specify the height range of the lead shielding needed (i.e.: 52” - 61” - keep in mind the lead shield is 36”high and add 4” for framework).  A screw jack moves the shield.  The jack is operated by a hand crank or a flat blade (both included) for a 3/8” drill.

Specifications

Lead Size:  48” W x 36” H x 5/8” T
Overall Size:  54” W x 35” D - height will vary
Height Adjustment Range:  9”
Casters:  Four 6” dia. swivel, locking, ball bearing
Finish:  Axalta Beige Ridge Tan Powder Coating
Weight:  Approx. 575 lbs (261 kg)
