Sizing information table for Tungsten Eye Shields

Details

Sizing information table for Tungsten Eye Shields.

Dimension C is the eyeshield diameter with a 0.5mm thick aluminum cap and Dimension D is the eyeshield diameter with a 1.0mm thick aluminum cap.

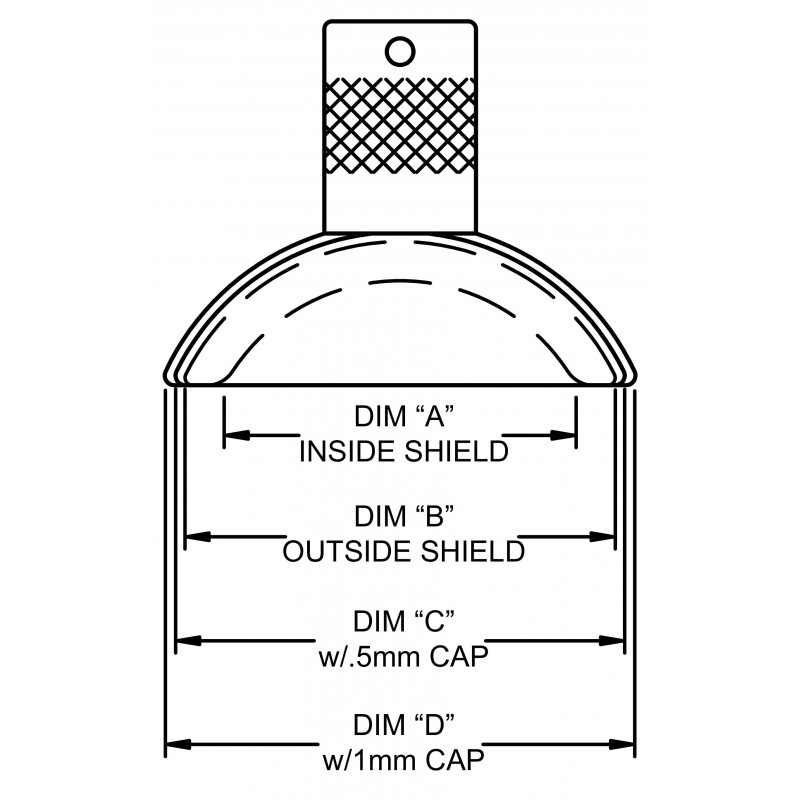

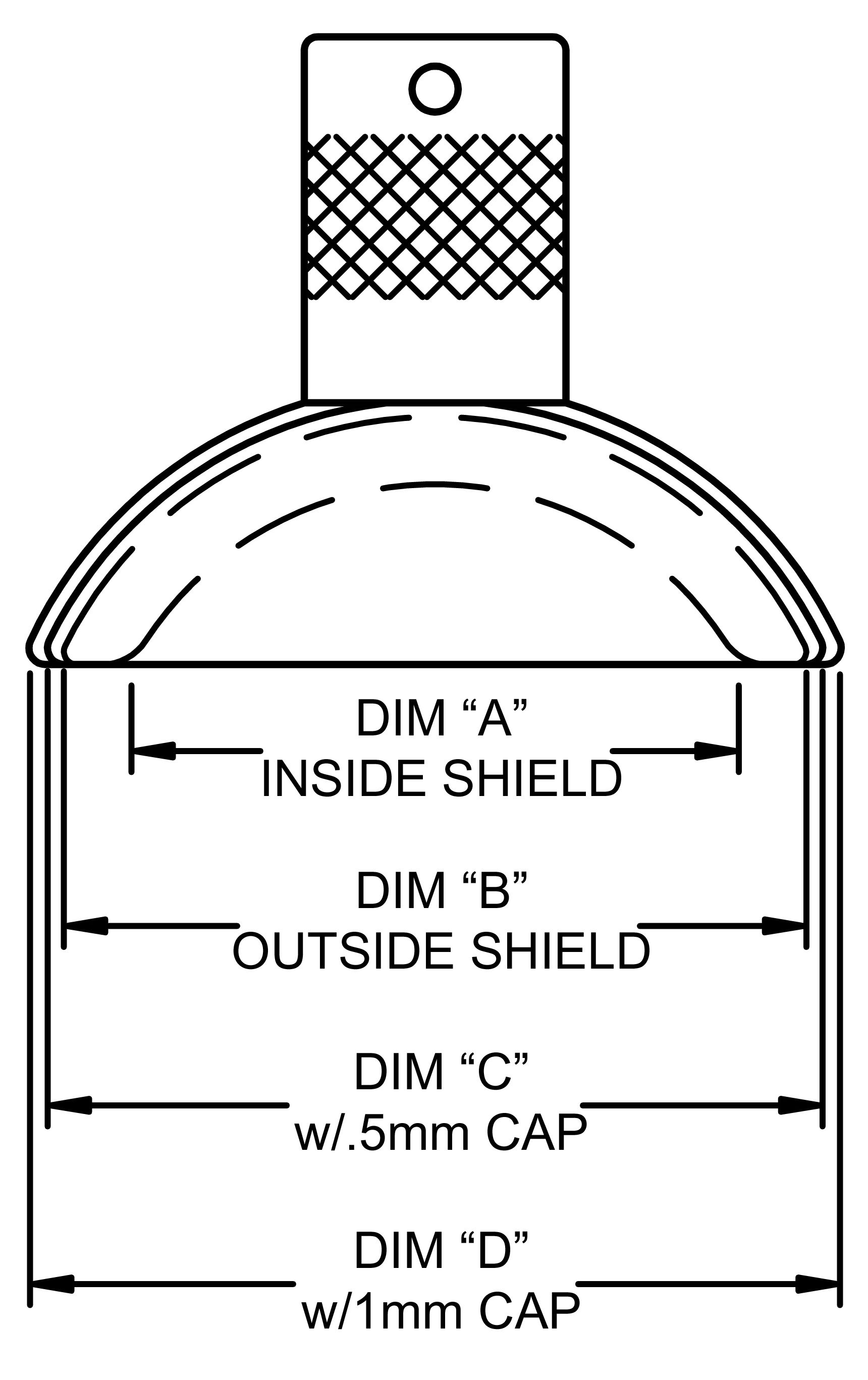

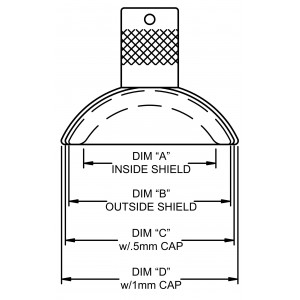

Sizing diagram for Tungsten Eye Shields




2mm thick Tungsten Eye Shields
Item Number Size Dimension A Dimension B Dimension C Dimension D
936-583

Extra

Small

11.6mm 15.7mm 16.8mm 17.9mm
936-585 Small 13.3mm 17.4mm 18.5mm 19.6mm
936-587 Medium 15.0mm 19.1mm 20.2mm 21.3mm
936-589 Large 16.7mm 20.8mm 21.9mm 23.0mm
936-591

Extra

Large

18.4mm 22.5mm 23.6mm 24.7mm





3mm thick Tungsten Eye Shields
Item Number

Size

Dimension A Dimension B Dimension C Dimension D
936-596

Extra

Small

11.0mm 17.4mm 18.5mm 19.6mm
936-598 Small 12.7mm 19.1mm 20.2mm 21.3mm
936-601 Medium 14.4mm 20.8mm 21.9mm 23.0mm
936-623 Large 16.1mm 22.5mm 23.6mm 24.7mm
936-627

Extra

Large

17.8mm 24.2mm 25.3mm 26.4mm
