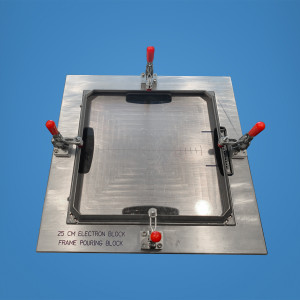

25x25 cm EBS Electron Frame Pouring Fixture for Varian MLC

Open Section K: Electron Cones, Mini, Periscopic & Accessories(PDF) to view related products. (Opens in a new tab)

25x25 cm EBS Electron Frame Pouring Fixture for Varian MLC

Includes only 25 × 25cm fixture

Features
• Raised Aluminum Base Plate acts as a heatsink to reduce cooling time
• Engraved alignment marks help with block foam placement
• Milled pocket and alignment grooves provide easy centering of the lucite/acrylic block tray
• Precision pocket is designed to hold the Varian electron frame and will not allow bulging or deformation
• Clamps hold frame securely without extending into the pour area
• Access cutouts make block and tray removal easy

EBS Electron Block Frame Pouring Fixtures are designed to make electron block pouring easy and more precise. The aluminum base plate promotes faster cooling and will not allow bulging of the frames enabling the blocks to fit into the accessory with ease and without breaking code reader pins. The fixture clamps hold the frame tightly against the tray to prevent leakage and do not extend into the block material making a uni-form and full thickness pour possible.  Access slots from below allow for easy removal of the block and frame.
