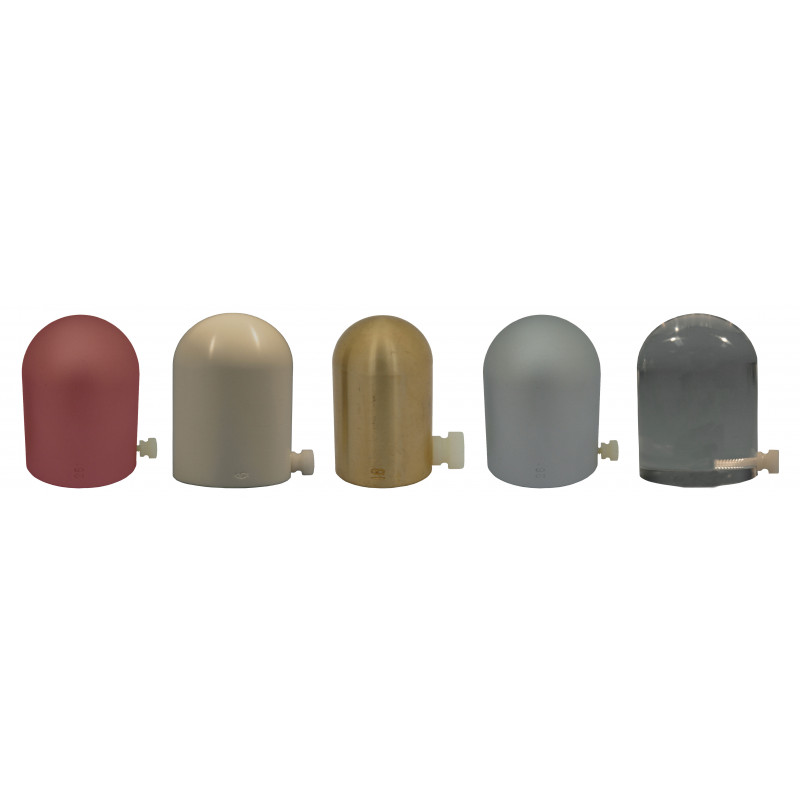

0.002cc Exradin A14P Planar Microchamber Build-Up Caps

0.002cc Exradin A14P Planar Microchamber Build-Up Caps
0.002cc Exradin A14P Planar Microchamber Build-Up Caps
Item Number :

A Table of Build-Up Caps for 0.002cc Exradin A14P Planar Microchamber (can be used on T14P)

Details

Build-Up Caps for 0.002cc Exradin A14P Planar Microchamber (can be used on T14P)



Energy D-Max in Water Wall Acrylic Wall Aluminum Wall Brass  Wall   Lead
  mm mm Item # mm Item # mm Item # mm Item #
  4 MV 11 7.80 659-A14P-04-1 3.40 659-A14P-04-2 1.09 659-A14P-04-3 0.81 659-A14P-04-4
  6 MV 15 11.17 659-A14P-06-1 4.87 659-A14P-06-2 1.55 659-A14P-06-3 1.17 659-A14P-06-4
  8 MV 20 15.39 659-A14P-08-1 6.71 659-A14P-08-2 2.14 659-A14P-08-3 1.61 659-A14P-08-4
10 MV  24 18.77 659-A14P-10-1 8.18 659-A14P-10-2 2.61 659-A14P-10-3 1.96 659-A14P-10-4
15 MV 27 21.30 659-A14P-15-1 9.29 659-A14P-15-2 2.96 659-A14P-15-3 2.22 659-A14P-15-4
18 MV 30 23.83 659-A14P-18-1 10.39 659-A14P-18-2 3.32 659-A14P-18-3 2.49 659-A14P-18-4
20 MV 35 28.05 659-A14P-20-1 12.23 659-A14P-20-2 3.90 659-A14P-20-3 2.93 659-A14P-20-4
24 MV 40 32.27 659-A14P-24-1 14.07 659-A14P-24-2 4.49 659-A14P-24-3 3.37 659-A14P-24-4
26 MV 50 40.71 659-A14P-26-1 17.75 659-A14P-26-2 5.67 659-A14P-26-3 4.25 659-A14P-26-4





Energy D-Max in Water Wall Copper Wall Polystyrene Wall Plastic Water Wall Solid Water
  mm mm Item # mm Item # mm Item # mm Item #
  4 MV 11 1.04 659-A14P-04-5 8.80 659-A14P-04-6 9.06 659-A14P-04-7 8.97 659-A14P-04-8
  6 MV 15 1.49 659-A14P-06-5 12.61 659-A14P-06-6 12.98 659-A14P-06-7 12.85 659-A14P-06-8
  8 MV 20 2.05 659-A14P-08-5 17.37 659-A14P-08-6 17.88 659-A14P-08-7 17.71 659-A14P-08-8
10 MV  24 2.50 659-A14P-10-5 21.18 659-A14P-10-6 21.80 659-A14P-10-7 21.59 659-A14P-10-8
15 MV 27 2.84 659-A14P-15-5 24.04 659-A14P-15-6 24.75 659-A14P-15-7 24.50 659-A14P-15-8
18 MV 30 3.17 659-A14P-18-5 26.90 659-A14P-18-6 27.69 659-A14P-18-7 27.42 659-A14P-18-8
20 MV 35 3.73 659-A14P-20-5 31.66 659-A14P-20-6 32.59 659-A14P-20-7 32.27 659-A14P-20-8
24 MV 40 4.30 659-A14P-24-5 36.42 659-A14P-24-6 37.49 659-A14P-24-7 37.13 659-A14P-24-8
26 MV 50 5.42 659-A14P-26-5 45.94 659-A14P-26-6 47.29 659-A14P-26-7 46.83 659-A14P-26-8
